Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: QualifiedResource
Namespace: http://www.openapplications.org/oagis
Containing Schema: MfgComponents.xsd
Abstract

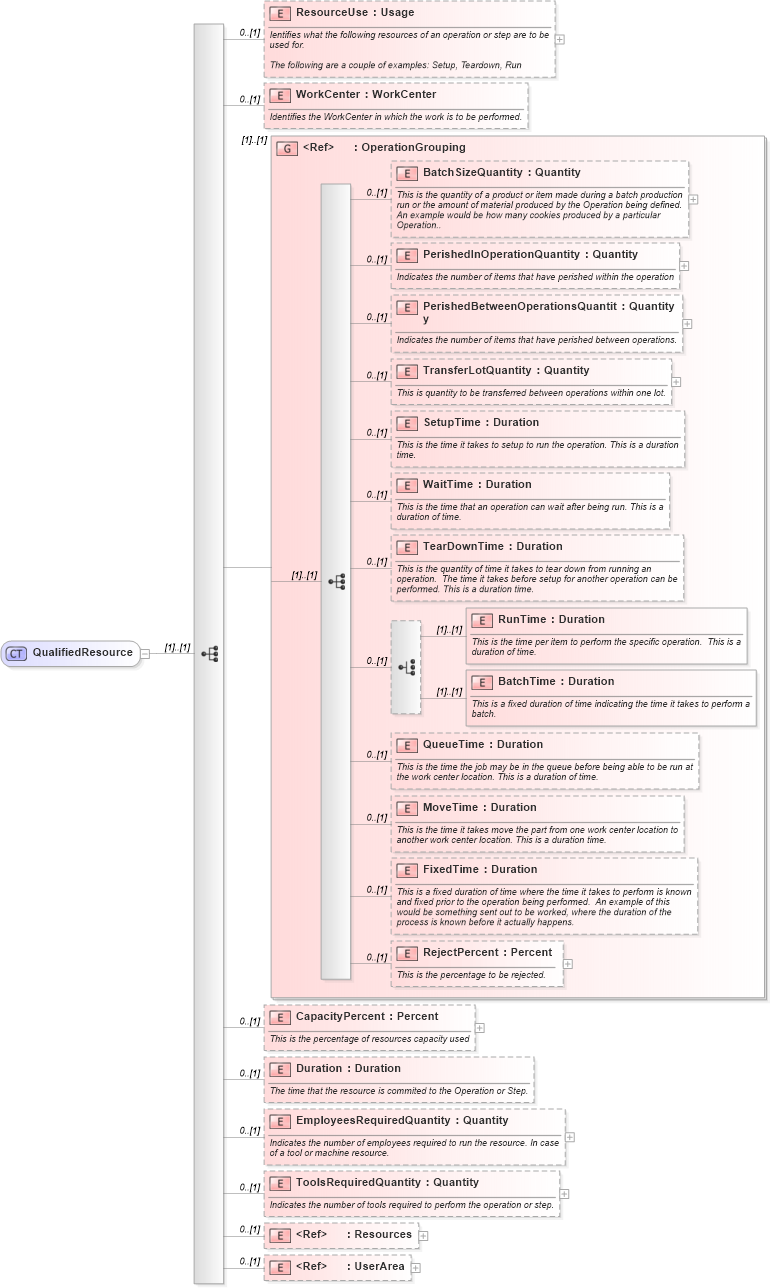

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema meta_xsd Drilldown into Resources in schema mfgcomponents_xsd Drilldown into ToolsRequiredQuantity in schema mfgcomponents_xsd Drilldown into EmployeesRequiredQuantity in schema mfgcomponents_xsd Drilldown into Duration in schema mfgcomponents_xsd Drilldown into CapacityPercent in schema mfgcomponents_xsd Drilldown into RejectPercent in schema mfgcomponents_xsd Drilldown into FixedTime in schema mfgcomponents_xsd Drilldown into MoveTime in schema mfgcomponents_xsd Drilldown into QueueTime in schema mfgcomponents_xsd Drilldown into BatchTime in schema mfgcomponents_xsd Drilldown into RunTime in schema mfgcomponents_xsd Drilldown into TearDownTime in schema mfgcomponents_xsd Drilldown into WaitTime in schema mfgcomponents_xsd Drilldown into SetupTime in schema mfgcomponents_xsd Drilldown into TransferLotQuantity in schema mfgcomponents_xsd Drilldown into PerishedBetweenOperationsQuantity in schema mfgcomponents_xsd Drilldown into PerishedInOperationQuantity in schema mfgcomponents_xsd Drilldown into BatchSizeQuantity in schema mfgcomponents_xsd Drilldown into OperationGrouping in schema mfgcomponents_xsd Drilldown into WorkCenter in schema mfgcomponents_xsd Drilldown into ResourceUse in schema mfgcomponents_xsdXSD Diagram of QualifiedResource in schema mfgcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:complexType name="QualifiedResource">
    <xs:sequence>
        <xs:element name="ResourceUse" type="Usage" minOccurs="0">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Ientifies what the following resources of an operation or step are to be used for.

The following are a couple of examples: Setup, Teardown, Run</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="WorkCenter" type="WorkCenter" minOccurs="0">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Identifies the WorkCenter in which the work is to be performed.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:group ref="OperationGrouping" />
        <xs:element name="CapacityPercent" type="Percent" minOccurs="0">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">This is the percentage of resources capacity used</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="Duration" type="Duration" minOccurs="0">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">The time that the resource is commited to the Operation or Step.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="EmployeesRequiredQuantity" type="Quantity" minOccurs="0">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Indicates the number of employees required to run the resource. In case of a tool or machine resource.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="ToolsRequiredQuantity" type="Quantity" minOccurs="0">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Indicates the number of tools required to perform the operation or step.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element ref="Resources" minOccurs="0" />
        <xs:element ref="UserArea" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ResourceUse oa:ResourceUse 0 (1)
WorkCenter oa:WorkCenter 0 (1)
BatchSizeQuantity oa:BatchSizeQuantity 0 (1)
PerishedInOperationQuantity oa:PerishedInOperationQuantity 0 (1)
PerishedBetweenOperationsQuantity oa:PerishedBetweenOperationsQuantity 0 (1)
TransferLotQuantity oa:TransferLotQuantity 0 (1)
SetupTime oa:SetupTime 0 (1)
WaitTime oa:WaitTime 0 (1)
TearDownTime oa:TearDownTime 0 (1)
RunTime oa:RunTime (1) (1)
BatchTime oa:BatchTime (1) (1)
QueueTime oa:QueueTime 0 (1)
MoveTime oa:MoveTime 0 (1)
FixedTime oa:FixedTime 0 (1)
RejectPercent oa:RejectPercent 0 (1)
CapacityPercent oa:CapacityPercent 0 (1)
Duration oa:Duration 0 (1)
EmployeesRequiredQuantity oa:EmployeesRequiredQuantity 0 (1)
ToolsRequiredQuantity oa:ToolsRequiredQuantity 0 (1)
Resources oa:Resources 0 (1)
UserArea oa:UserArea 0 (1)
<xs:group> oa:OperationGrouping (1) (1)
Collapse Derivation Tree:
Collapse References:
oa:QualifiedResource
