Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: QualifiedResource
Namespace: http://www.openapplications.org/oagis
Type: oa:QualifiedResource
Containing Schema: MfgComponents.xsd
Abstract
Documentation:
Information that describes the resources to perform the specified resource usage for the operation and/or the step that is defined by the preceding Operation or Step.

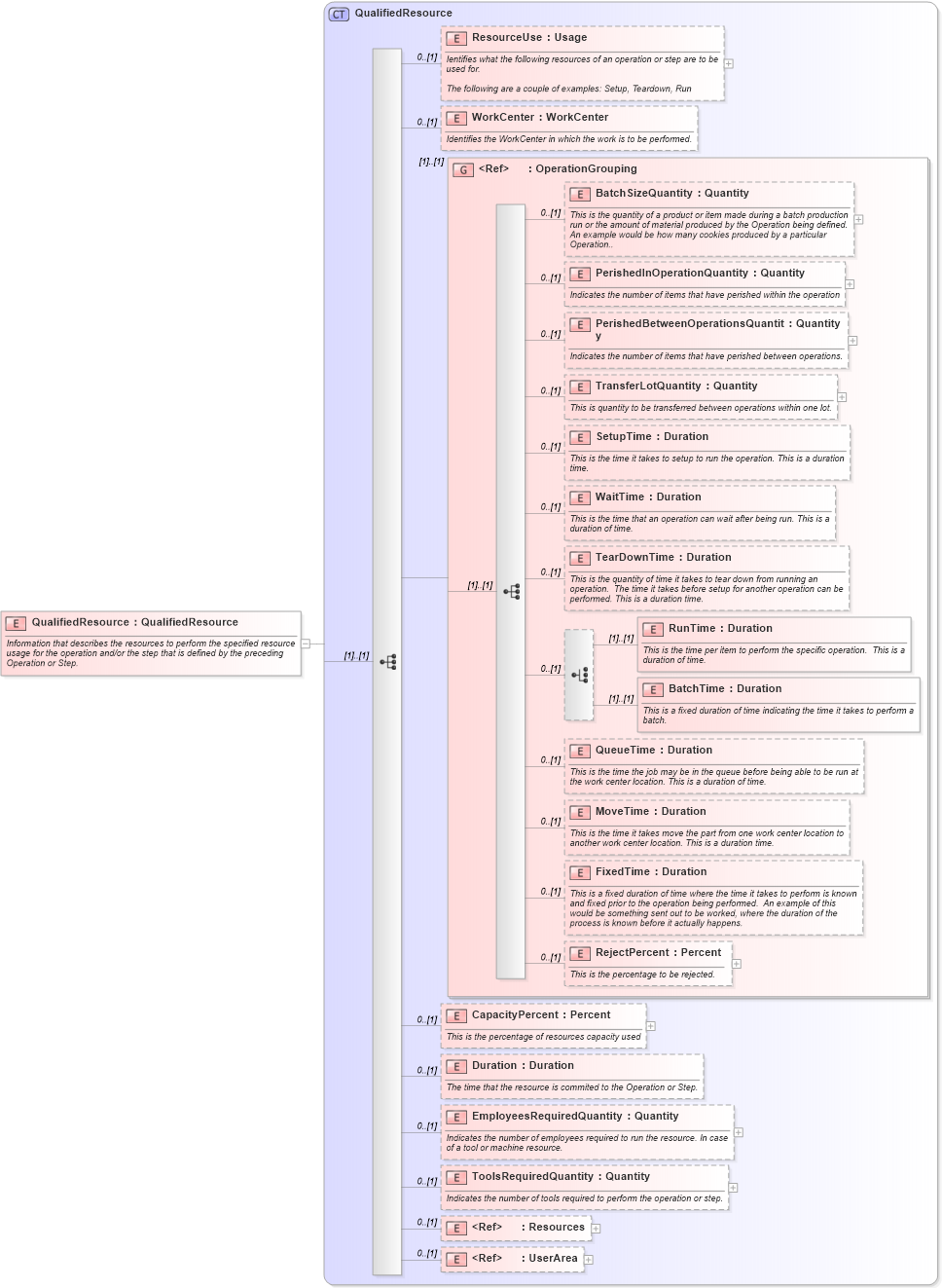

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema meta_xsd Drilldown into Resources in schema mfgcomponents_xsd Drilldown into ToolsRequiredQuantity in schema mfgcomponents_xsd Drilldown into EmployeesRequiredQuantity in schema mfgcomponents_xsd Drilldown into Duration in schema mfgcomponents_xsd Drilldown into CapacityPercent in schema mfgcomponents_xsd Drilldown into RejectPercent in schema mfgcomponents_xsd Drilldown into FixedTime in schema mfgcomponents_xsd Drilldown into MoveTime in schema mfgcomponents_xsd Drilldown into QueueTime in schema mfgcomponents_xsd Drilldown into BatchTime in schema mfgcomponents_xsd Drilldown into RunTime in schema mfgcomponents_xsd Drilldown into TearDownTime in schema mfgcomponents_xsd Drilldown into WaitTime in schema mfgcomponents_xsd Drilldown into SetupTime in schema mfgcomponents_xsd Drilldown into TransferLotQuantity in schema mfgcomponents_xsd Drilldown into PerishedBetweenOperationsQuantity in schema mfgcomponents_xsd Drilldown into PerishedInOperationQuantity in schema mfgcomponents_xsd Drilldown into BatchSizeQuantity in schema mfgcomponents_xsd Drilldown into OperationGrouping in schema mfgcomponents_xsd Drilldown into WorkCenter in schema mfgcomponents_xsd Drilldown into ResourceUse in schema mfgcomponents_xsd Drilldown into QualifiedResource in schema mfgcomponents_xsdXSD Diagram of QualifiedResource in schema mfgcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:element name="QualifiedResource" type="QualifiedResource">
    <xs:annotation>
        <xs:documentation source="http://www.openapplications.org/oagis">Information that describes the resources to perform the specified resource usage for the operation and/or the step that is defined by the preceding Operation or Step.  </xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ResourceUse oa:ResourceUse 0 (1)
WorkCenter oa:WorkCenter 0 (1)
BatchSizeQuantity oa:BatchSizeQuantity 0 (1)
PerishedInOperationQuantity oa:PerishedInOperationQuantity 0 (1)
PerishedBetweenOperationsQuantity oa:PerishedBetweenOperationsQuantity 0 (1)
TransferLotQuantity oa:TransferLotQuantity 0 (1)
SetupTime oa:SetupTime 0 (1)
WaitTime oa:WaitTime 0 (1)
TearDownTime oa:TearDownTime 0 (1)
RunTime oa:RunTime (1) (1)
BatchTime oa:BatchTime (1) (1)
QueueTime oa:QueueTime 0 (1)
MoveTime oa:MoveTime 0 (1)
FixedTime oa:FixedTime 0 (1)
RejectPercent oa:RejectPercent 0 (1)
CapacityPercent oa:CapacityPercent 0 (1)
Duration oa:Duration 0 (1)
EmployeesRequiredQuantity oa:EmployeesRequiredQuantity 0 (1)
ToolsRequiredQuantity oa:ToolsRequiredQuantity 0 (1)
Resources oa:Resources 0 (1)
UserArea oa:UserArea 0 (1)
<xs:group> oa:OperationGrouping (1) (1)
Collapse Derivation Tree:
