Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: AcknowledgeEngineeringWorkDocument
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:AcknowledgeEngineeringWorkDocumentType
Containing Schema: AcknowledgeEngineeringWorkDocument.xsd
Abstract
Documentation:
The purpose of the AcknowledgeEngineeringWorkDocument is to enable an application to provide EngineeringWorkDocument from another business application module. The AcknowledgeEngineeringWorkDocument is provided in response to the ProcessEngineeringWorkDocument in order to accept or reject the request to process.

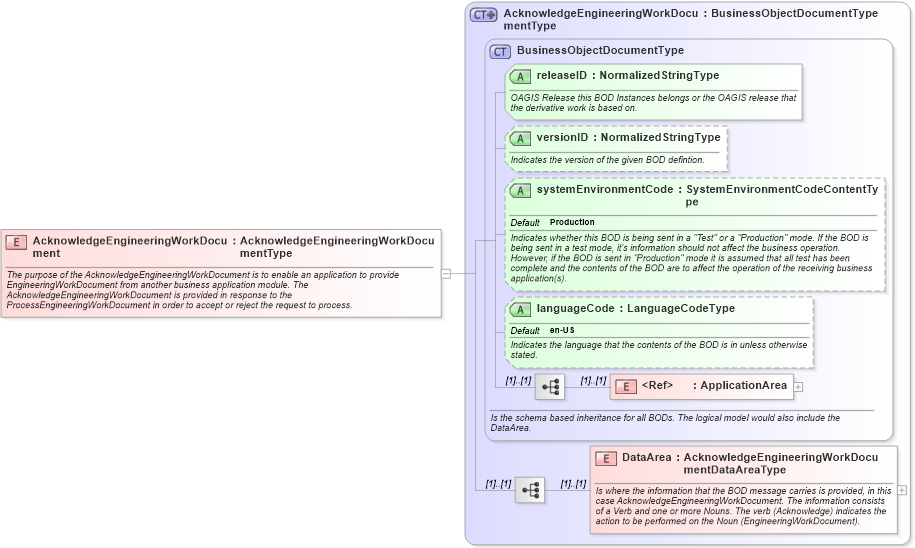

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema acknowledgeengineeringworkdocument_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into AcknowledgeEngineeringWorkDocumentType in schema acknowledgeengineeringworkdocument_xsdXSD Diagram of AcknowledgeEngineeringWorkDocument in schema acknowledgeengineeringworkdocument_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="AcknowledgeEngineeringWorkDocument" type="AcknowledgeEngineeringWorkDocumentType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the AcknowledgeEngineeringWorkDocument is to enable an application to provide EngineeringWorkDocument from another business application module. The AcknowledgeEngineeringWorkDocument is provided in response to the ProcessEngineeringWorkDocument in order to accept or reject the request to process.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
