Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: BusinessObjectDocumentType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Meta.xsd
Abstract
Documentation:
Is the schema based inheritance for all BODs. The logical model would also include the DataArea.

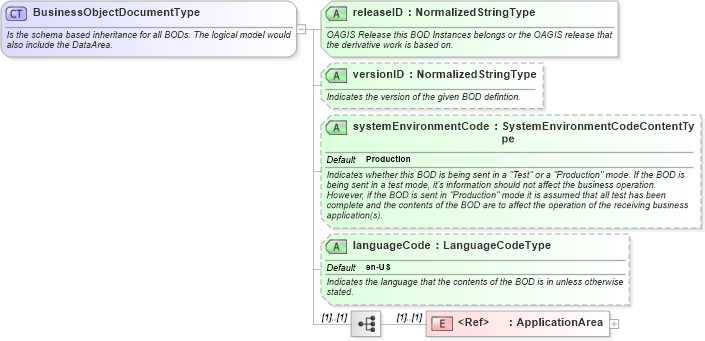

Collapse XSD Schema Diagram:
Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsdXSD Diagram of BusinessObjectDocumentType in schema meta_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="BusinessObjectDocumentType">
    <xsd:annotation>
        <xsd:documentation>Is the schema based inheritance for all BODs. The logical model would also include the DataArea.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ApplicationArea" />
    </xsd:sequence>
    <xsd:attribute name="releaseID" type="NormalizedStringType" use="required">
        <xsd:annotation>
            <xsd:documentation>OAGIS Release this BOD Instances belongs or the OAGIS release that the derivative work is based on.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="versionID" type="NormalizedStringType" use="optional">
        <xsd:annotation>
            <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates the version of the given BOD defintion.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="systemEnvironmentCode" type="SystemEnvironmentCodeContentType" use="optional" default="Production">
        <xsd:annotation>
            <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates whether this BOD is being sent in a "Test" or a "Production" mode. If the BOD is being sent in a test mode, it's information should not affect the business operation. However, if the BOD is sent in "Production" mode it is assumed that all test has been complete and the contents of the BOD are to affect the operation of the receiving business application(s).</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="languageCode" type="LanguageCodeType" use="optional" default="en-US">
        <xsd:annotation>
            <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates the language that the contents of the BOD is in unless otherwise stated.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:AcknowledgeAllocateResourceType, nsA:AcknowledgeConfirmWIPType, nsA:AcknowledgeCostingActivityType, nsA:AcknowledgeCreditStatusType, nsA:AcknowledgeCreditTransferISTType, nsA:AcknowledgeCreditTransferType, nsA:AcknowledgeCreditType, nsA:AcknowledgeDebitTransferISTType, nsA:AcknowledgeDebitTransferType, nsA:AcknowledgeDispatchListType, nsA:AcknowledgeEmployeeWorkTimeType, nsA:AcknowledgeEngineeringChangeOrderType, nsA:AcknowledgeEngineeringWorkDocumentType, nsA:AcknowledgeInspectDeliveryType, nsA:AcknowledgeInventoryBalanceType, nsA:AcknowledgeInventoryConsumptionType, nsA:AcknowledgeInventoryCountType, nsA:AcknowledgeInvoiceType, nsA:AcknowledgeIssueInventoryType, nsA:AcknowledgeJournalEntryType, nsA:AcknowledgeMaintenanceOrderType, nsA:AcknowledgeMatchDocumentType, nsA:AcknowledgeMergeWIPType, nsA:AcknowledgeMoveInventoryType, nsA:AcknowledgeMoveWIPType, nsA:AcknowledgeOnlineOrderType, nsA:AcknowledgeOperationType, nsA:AcknowledgeOpportunityType, nsA:AcknowledgePaymentStatusISTType, nsA:AcknowledgePaymentStatusType, nsA:AcknowledgePickListType, nsA:AcknowledgeProductAvailabilityType, nsA:AcknowledgeProductionOrderType, nsA:AcknowledgePurchaseOrderType, nsA:AcknowledgeQuoteType, nsA:AcknowledgeReceiveDeliveryType, nsA:AcknowledgeReceiveItemType, nsA:AcknowledgeRecoverWIPType, nsA:AcknowledgeRequireProductType, nsA:AcknowledgeRequisitionType, nsA:AcknowledgeRFQType, nsA:AcknowledgeRiskControlLibraryType, nsA:AcknowledgeSalesLeadType, nsA:AcknowledgeSalesOrderType, nsA:AcknowledgeShipmentType, nsA:AcknowledgeShipmentUnitType, nsA:AcknowledgeSplitWIPType, nsA:AcknowledgeWIPStatusType, nsA:AddPurchaseOrderType, nsA:AddQuoteType, nsA:AddRequisitionType, nsA:AddRFQType, nsA:AddSalesOrderType, nsA:AllocateCostingActivityType, nsA:CancelDispatchListType, nsA:CancelEmployeeWorkTimeType, nsA:CancelEngineeringChangeOrderType, nsA:CancelEngineeringWorkDocumentType, nsA:CancelInspectDeliveryType, nsA:CancelInventoryBalanceType, nsA:CancelInvoiceType, nsA:CancelMaintenanceOrderType, nsA:CancelPickListType, nsA:CancelProductionOrderType, nsA:CancelPurchaseOrderType, nsA:CancelQuoteType, nsA:CancelReceiveDeliveryType, nsA:CancelRequireProductType, nsA:CancelRequisitionType, nsA:CancelRFQType, nsA:CancelSalesOrderType, nsA:ChangeConfirmWIPType, nsA:ChangeCreditStatusType, nsA:ChangeCreditType, nsA:ChangeDispatchListType, nsA:ChangeEmployeeWorkTimeType, nsA:ChangeEngineeringChangeOrderType, nsA:ChangeEngineeringWorkDocumentType, nsA:ChangeInspectDeliveryType, nsA:ChangeInventoryBalanceType, nsA:ChangeInvoiceType, nsA:ChangeMaintenanceOrderType, nsA:ChangeOnlineOrderType, nsA:ChangeOpportunityType, nsA:ChangePickListType, nsA:ChangeProductionOrderType, nsA:ChangePurchaseOrderType, nsA:ChangeQuoteType, nsA:ChangeReceiveDeliveryType, nsA:ChangeRequireProductType, nsA:ChangeRequisitionType, nsA:ChangeRFQType, nsA:ChangeSalesLeadType, nsA:ChangeSalesOrderType, nsA:ConfirmBODType, nsA:CreateMaintenanceOrderType, nsA:CreateProductionOrderType, nsA:CreateRequisitionType, nsA:GetActualLedgerType, nsA:GetAllocateResourceType, nsA:GetBOMType, nsA:GetBudgetLedgerType, nsA:GetCarrierRouteType, nsA:GetCatalogType, nsA:GetChartOfAccountsType, nsA:GetConfirmWIPType, nsA:GetCostingActivityType, nsA:GetCreditStatusType, nsA:GetCreditTransferISTType, nsA:GetCreditTransferType, nsA:GetCreditType, nsA:GetCurrencyExchangeRateType, nsA:GetCustomerPartyMasterType, nsA:GetDebitTransferISTType, nsA:GetDebitTransferType, nsA:GetDispatchListType, nsA:GetEmployeeWorkScheduleType, nsA:GetEmployeeWorkTimeType, nsA:GetEngineeringChangeOrderType, nsA:GetEngineeringWorkDocumentType, nsA:GetFieldType, nsA:GetInspectDeliveryType, nsA:GetInventoryBalanceType, nsA:GetInventoryConsumptionType, nsA:GetInventoryCountType, nsA:GetInvoiceLedgerEntryType, nsA:GetInvoiceType, nsA:GetIssueInventoryType, nsA:GetItemMasterType, nsA:GetJournalEntryType, nsA:GetListActualLedgerType, nsA:GetListBOMType, nsA:GetListInventoryCountType, nsA:GetListItemMasterType, nsA:GetListMaintenanceOrderType, nsA:GetListPickListType, nsA:GetListProductionOrderType, nsA:GetListPurchaseOrderType, nsA:GetListQuoteType, nsA:GetListReceiveDeliveryType, nsA:GetListRequisitionType, nsA:GetListRFQType, nsA:GetListRoutingType, nsA:GetListSalesOrderType, nsA:GetListUOMGroupType, nsA:GetLocationServiceType, nsA:GetLocationType, nsA:GetMaintenanceOrderType, nsA:GetMatchDocumentType, nsA:GetMergeWIPType, nsA:GetMoveInventoryType, nsA:GetMoveWIPType, nsA:GetOnlineOrderType, nsA:GetOnlineSessionType, nsA:GetOperationType, nsA:GetOpportunityType, nsA:GetPartyMasterType, nsA:GetPayableType, nsA:GetPaymentStatusISTType, nsA:GetPaymentStatusType, nsA:GetPersonnelType, nsA:GetPickListType, nsA:GetPlanningScheduleType, nsA:GetPriceListType, nsA:GetProductAvailabilityType, nsA:GetProductionOrderType, nsA:GetProjectAccountingType, nsA:GetProjectMasterType, nsA:GetPurchaseOrderType, nsA:GetQuoteType, nsA:GetReceivableType, nsA:GetReceiveDeliveryType, nsA:GetReceiveItemType, nsA:GetRecoverWIPType, nsA:GetRequireProductType, nsA:GetRequisitionType, nsA:GetRFQType, nsA:GetRiskControlLibraryType, nsA:GetRoutingType, nsA:GetSalesLeadType, nsA:GetSalesOrderType, nsA:GetSequenceScheduleType, nsA:GetShipmentScheduleType, nsA:GetShipmentType, nsA:GetShipmentUnitType, nsA:GetSplitWIPType, nsA:GetSupplierPartyMasterType, nsA:GetUOMGroupType, nsA:GetWIPStatusType, nsA:IssueMoveInventoryType, nsA:ListActualLedgerType, nsA:ListBOMType, nsA:ListInventoryCountType, nsA:ListItemMasterType, nsA:ListMaintenanceOrderType, nsA:ListPickListType, nsA:ListProductionOrderType, nsA:ListPurchaseOrderType, nsA:ListQuoteType, nsA:ListReceiveDeliveryType, nsA:ListRequisitionType, nsA:ListRFQType, nsA:ListRoutingType, nsA:ListSalesOrderType, nsA:ListUOMGroupType, nsA:LoadActualLedgerType, nsA:LoadBudgetLedgerType, nsA:LoadInvoiceLedgerEntryType, nsA:LoadMatchDocumentType, nsA:LoadPayableType, nsA:LoadProjectAccountingType, nsA:LoadReceivableType, nsA:PostCostingActivityType, nsA:PostJournalEntryType, nsA:PostMatchDocumentType, nsA:ProcessAllocateResourceType, nsA:ProcessConfirmWIPType, nsA:ProcessCreditStatusType, nsA:ProcessCreditTransferISTType, nsA:ProcessCreditTransferType, nsA:ProcessCreditType, nsA:ProcessDebitTransferISTType, nsA:ProcessDebitTransferType, nsA:ProcessDispatchListType, nsA:ProcessEmployeeWorkTimeType, nsA:ProcessEngineeringChangeOrderType, nsA:ProcessEngineeringWorkDocumentType, nsA:ProcessInspectDeliveryType, nsA:ProcessInventoryBalanceType, nsA:ProcessInventoryConsumptionType, nsA:ProcessInventoryCountType, nsA:ProcessInvoiceType, nsA:ProcessIssueInventoryType, nsA:ProcessMaintenanceOrderType, nsA:ProcessMergeWIPType, nsA:ProcessMoveInventoryType, nsA:ProcessMoveWIPType, nsA:ProcessOnlineOrderType, nsA:ProcessOperationType, nsA:ProcessOpportunityType, nsA:ProcessPaymentStatusISTType, nsA:ProcessPaymentStatusType, nsA:ProcessPickListType, nsA:ProcessProductAvailabilityType, nsA:ProcessProductionOrderType, nsA:ProcessPurchaseOrderType, nsA:ProcessQuoteType, nsA:ProcessReceiveDeliveryType, nsA:ProcessReceiveItemType, nsA:ProcessRecoverWIPType, nsA:ProcessRequireProductType, nsA:ProcessRequisitionType, nsA:ProcessRFQType, nsA:ProcessRiskControlLibraryType, nsA:ProcessSalesLeadType, nsA:ProcessSalesOrderType, nsA:ProcessShipmentType, nsA:ProcessShipmentUnitType, nsA:ProcessSplitWIPType, nsA:ProcessWIPStatusType, nsA:ReceiveMoveInventoryType, nsA:ReceiveProductionOrderType, nsA:ReceivePurchaseOrderType, nsA:RespondConfirmWIPType, nsA:RespondCreditStatusType, nsA:RespondCreditType, nsA:RespondDispatchListType, nsA:RespondEmployeeWorkTimeType, nsA:RespondEngineeringChangeOrderType, nsA:RespondEngineeringWorkDocumentType, nsA:RespondInspectDeliveryType, nsA:RespondInventoryBalanceType, nsA:RespondInvoiceType, nsA:RespondMaintenanceOrderType, nsA:RespondOnlineOrderType, nsA:RespondOpportunityType, nsA:RespondPickListType, nsA:RespondProductionOrderType, nsA:RespondPurchaseOrderType, nsA:RespondQuoteType, nsA:RespondReceiveDeliveryType, nsA:RespondRequireProductType, nsA:RespondRequisitionType, nsA:RespondRFQType, nsA:RespondSalesLeadType, nsA:RespondSalesOrderType, nsA:ShowActualLedgerType, nsA:ShowAllocateResourceType, nsA:ShowBOMType, nsA:ShowBudgetLedgerType, nsA:ShowCarrierRouteType, nsA:ShowCatalogType, nsA:ShowChartOfAccountsType, nsA:ShowConfirmWIPType, nsA:ShowCostingActivityType, nsA:ShowCreditStatusType, nsA:ShowCreditTransferISTType, nsA:ShowCreditTransferType, nsA:ShowCreditType, nsA:ShowCurrencyExchangeRateType, nsA:ShowCustomerPartyMasterType, nsA:ShowDebitTransferISTType, nsA:ShowDebitTransferType, nsA:ShowDispatchListType, nsA:ShowEmployeeWorkScheduleType, nsA:ShowEmployeeWorkTimeType, nsA:ShowEngineeringChangeOrderType, nsA:ShowEngineeringWorkDocumentType, nsA:ShowFieldType, nsA:ShowInspectDeliveryType, nsA:ShowInventoryBalanceType, nsA:ShowInventoryConsumptionType, nsA:ShowInventoryCountType, nsA:ShowInvoiceLedgerEntryType, nsA:ShowInvoiceType, nsA:ShowIssueInventoryType, nsA:ShowItemMasterType, nsA:ShowJournalEntryType, nsA:ShowLocationServiceType, nsA:ShowLocationType, nsA:ShowMaintenanceOrderType, nsA:ShowMatchDocumentType, nsA:ShowMergeWIPType, nsA:ShowMoveInventoryType, nsA:ShowMoveWIPType, nsA:ShowOnlineOrderType, nsA:ShowOnlineSessionType, nsA:ShowOperationType, nsA:ShowOpportunityType, nsA:ShowPartyMasterType, nsA:ShowPayableType, nsA:ShowPaymentStatusISTType, nsA:ShowPaymentStatusType, nsA:ShowPersonnelType, nsA:ShowPickListType, nsA:ShowPlanningScheduleType, nsA:ShowPriceListType, nsA:ShowProductAvailabilityType, nsA:ShowProductionOrderType, nsA:ShowProjectAccountingType, nsA:ShowProjectMasterType, nsA:ShowPurchaseOrderType, nsA:ShowQuoteType, nsA:ShowReceivableType, nsA:ShowReceiveDeliveryType, nsA:ShowReceiveItemType, nsA:ShowRecoverWIPType, nsA:ShowRequireProductType, nsA:ShowRequisitionType, nsA:ShowRFQType, nsA:ShowRiskControlLibraryType, nsA:ShowRoutingType, nsA:ShowSalesLeadType, nsA:ShowSalesOrderType, nsA:ShowSequenceScheduleType, nsA:ShowShipmentScheduleType, nsA:ShowShipmentType, nsA:ShowShipmentUnitType, nsA:ShowSplitWIPType, nsA:ShowSupplierPartyMasterType, nsA:ShowUOMGroupType, nsA:ShowWIPStatusType, nsA:SyncAllocateResourceType, nsA:SyncBOMType, nsA:SyncCarrierRouteType, nsA:SyncCatalogType, nsA:SyncChartOfAccountsType, nsA:SyncCreditStatusType, nsA:SyncCreditType, nsA:SyncCurrencyExchangeRateType, nsA:SyncCustomerPartyMasterType, nsA:SyncDispatchListType, nsA:SyncEmployeeWorkScheduleType, nsA:SyncEmployeeWorkTimeType, nsA:SyncEngineeringChangeOrderType, nsA:SyncEngineeringWorkDocumentType, nsA:SyncFieldType, nsA:SyncInspectDeliveryType, nsA:SyncInventoryBalanceType, nsA:SyncInventoryConsumptionType, nsA:SyncInventoryCountType, nsA:SyncInvoiceType, nsA:SyncItemMasterType, nsA:SyncLocationType, nsA:SyncMaintenanceOrderType, nsA:SyncOnlineOrderType, nsA:SyncOperationType, nsA:SyncOpportunityType, nsA:SyncPartyMasterType, nsA:SyncPersonnelType, nsA:SyncPickListType, nsA:SyncPlanningScheduleType, nsA:SyncPriceListType, nsA:SyncProductionOrderType, nsA:SyncProjectMasterType, nsA:SyncPurchaseOrderType, nsA:SyncQuoteType, nsA:SyncRequisitionType, nsA:SyncRFQType, nsA:SyncRiskControlLibraryType, nsA:SyncRoutingType, nsA:SyncSalesLeadType, nsA:SyncSalesOrderType, nsA:SyncSequenceScheduleType, nsA:SyncShipmentScheduleType, nsA:SyncShipmentType, nsA:SyncShipmentUnitType, nsA:SyncSupplierPartyMasterType, nsA:SyncUOMGroupType, nsA:UpdateConfirmWIPType, nsA:UpdateCreditStatusType, nsA:UpdateCreditType, nsA:UpdateDispatchListType, nsA:UpdateEmployeeWorkTimeType, nsA:UpdateEngineeringChangeOrderType, nsA:UpdateEngineeringWorkDocumentType, nsA:UpdateInspectDeliveryType, nsA:UpdateInventoryBalanceType, nsA:UpdateInventoryCountType, nsA:UpdateInvoiceType, nsA:UpdateMaintenanceOrderType, nsA:UpdateMatchDocumentType, nsA:UpdateOnlineOrderType, nsA:UpdateOpportunityType, nsA:UpdatePickListType, nsA:UpdateProductionOrderType, nsA:UpdatePurchaseOrderType, nsA:UpdateQuoteType, nsA:UpdateReceiveDeliveryType, nsA:UpdateRequireProductType, nsA:UpdateRequisitionType, nsA:UpdateRFQType, nsA:UpdateSalesLeadType, nsA:UpdateSalesOrderType
