Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ShowInvoiceLedgerEntry
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ShowInvoiceLedgerEntryType
Containing Schema: ShowInvoiceLedgerEntry.xsd
Abstract
Documentation:
The purpose of the ShowInvoiceLedgerEntry is to supply InvoiceLedgerEntry information to another business application module.

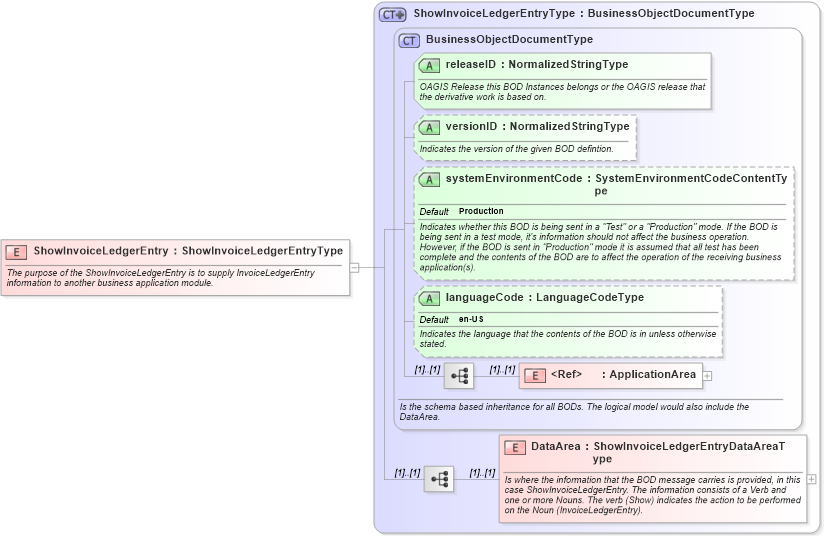

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema showinvoiceledgerentry_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ShowInvoiceLedgerEntryType in schema showinvoiceledgerentry_xsdXSD Diagram of ShowInvoiceLedgerEntry in schema showinvoiceledgerentry_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ShowInvoiceLedgerEntry" type="ShowInvoiceLedgerEntryType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ShowInvoiceLedgerEntry is to supply InvoiceLedgerEntry information to another business application module. </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
