Definition Type: Element
Name: ListQuote
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ListQuoteType
Containing Schema: ListQuote.xsd
Abstract
Documentation:
In an effort to simpilify the usage of the verbs the ListQuote BOD is being depricated as of OAGIS 9.0, the ListQuote will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS. As such for all new development we recommend that you use the ShowQuote BOD which may serve the same function of the ListQuote BOD. The purpose of the List Quote is to publish one or more summary listings of Quote information to other business application component. This may be in response to a GetListQuote request or to proactively publish a listing of summary Quote information for a business event.

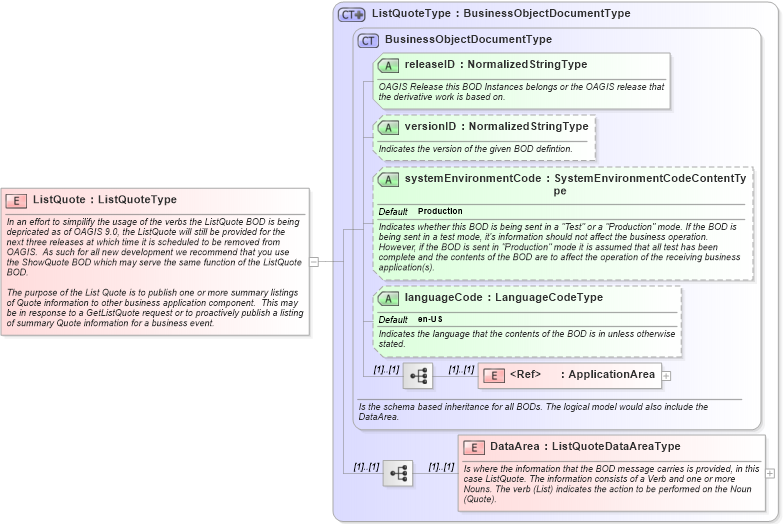

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema listquote_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ListQuoteType in schema listquote_xsdXSD Diagram of ListQuote in schema listquote_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ListQuote" type="ListQuoteType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">In an effort to simpilify the usage of the verbs the ListQuote BOD is being depricated as of OAGIS 9.0, the ListQuote will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS.  As such for all new development we recommend that you use the ShowQuote BOD which may serve the same function of the ListQuote BOD.

The purpose of the List Quote is to publish one or more summary listings of Quote information to other business application component.  This may be in response to a GetListQuote request or to proactively publish a listing of summary Quote information for a business event.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
