Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: AddRequisition
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:AddRequisitionType
Containing Schema: AddRequisition.xsd
Abstract
Documentation:
AddRequisition is being deprecated as of OAGIS 9.0. AddRequisition will be made available for the next three releases. OAGi recommend using ProcessRequisition for all new development. The purpose of the AddRequisition is to send demand for goods or services to another business application for consideration of buying or in some way obtaining the requested items.

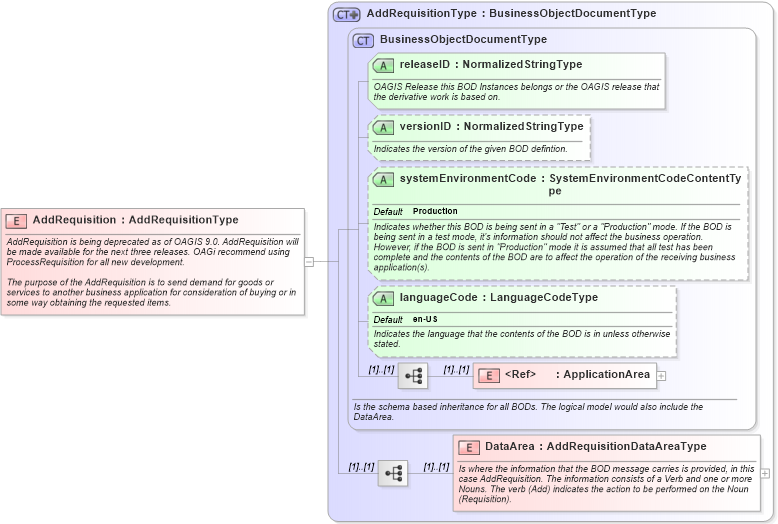

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema addrequisition_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into AddRequisitionType in schema addrequisition_xsdXSD Diagram of AddRequisition in schema addrequisition_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="AddRequisition" type="AddRequisitionType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">AddRequisition is being deprecated as of OAGIS 9.0. AddRequisition will be made available for the next three releases. OAGi recommend using ProcessRequisition for all new development.

The purpose of the AddRequisition is to send demand for goods or services to another business application for consideration of buying or in some way obtaining the requested items.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
