Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ShowCredit
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ShowCreditType
Containing Schema: ShowCredit.xsd
Abstract
Documentation:
The purpose of the ShowCredit is to provide credit information concerning a trading partner. The ShowCredit is the reply required by the GetCredit BOD. This BOD type may also be used as an information mechanism that is triggered by a business event and not a Get request.

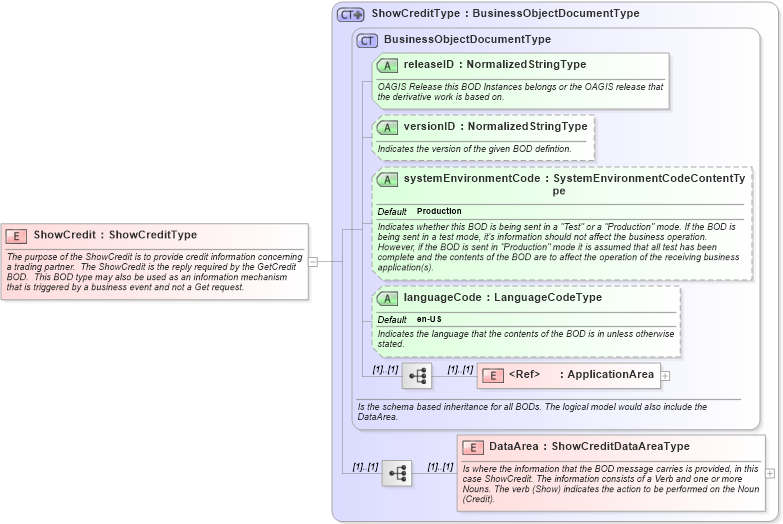

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema showcredit_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ShowCreditType in schema showcredit_xsdXSD Diagram of ShowCredit in schema showcredit_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ShowCredit" type="ShowCreditType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ShowCredit is to provide credit information concerning a trading partner.  The ShowCredit is the reply required by the GetCredit BOD.  This BOD type may also be used as an information mechanism that is triggered by a business event and not a Get request.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
