Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: GetPlanningSchedule
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:GetPlanningScheduleType
Containing Schema: GetPlanningSchedule.xsd
Abstract
Documentation:
Since collaboration between a customer and a supplier can potentially go through several rounds of negotiations, both parties can use the same BOD to communicate their current demand or supply schedule in response to what they received from the other party. Either party can indicate detailed exception descriptions along with reason code and action code to the other party why the original demand/supply requirements need to be adjusted using the optional Data Type PlanningScheduleException. The purpose of the GetPlanningSchedule is to enable a business applications module to request this Planning Schedule information from another business application. The response to this BOD is ShowPlanningSchedule.

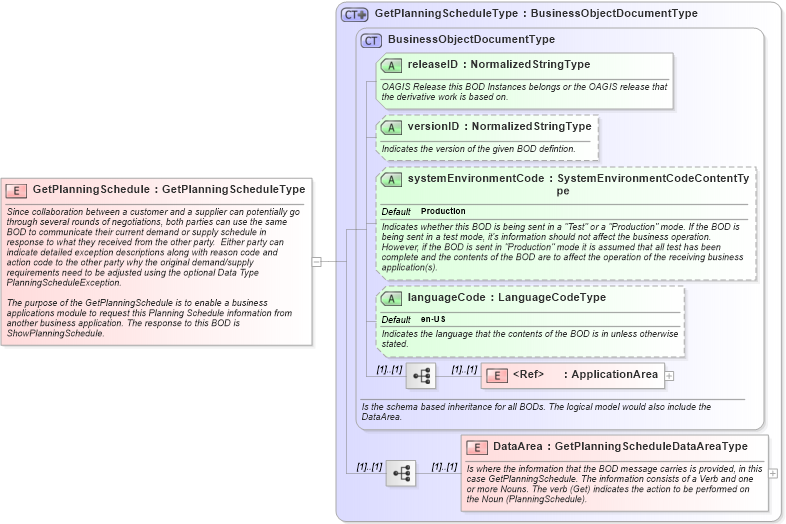

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema getplanningschedule_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into GetPlanningScheduleType in schema getplanningschedule_xsdXSD Diagram of GetPlanningSchedule in schema getplanningschedule_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="GetPlanningSchedule" type="GetPlanningScheduleType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Since collaboration between a customer and a supplier can potentially go through several rounds of negotiations, both parties can use the same BOD to communicate their current demand or supply schedule in response to what they received from the other party.  Either party can indicate detailed exception descriptions along with reason code and action code to the other party why the original demand/supply requirements need to be adjusted using the optional Data Type PlanningScheduleException.

The purpose of the GetPlanningSchedule is to enable a business applications module to request this Planning Schedule information from another business application. The response to this BOD is ShowPlanningSchedule.
</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
