Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ShowBOM
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ShowBOMType
Containing Schema: ShowBOM.xsd
Abstract
Documentation:
The purpose of the ShowBOM is to supply Item Bill of Material information to another business application module. This BOD may also be initiated by the sending system upon some event occurring. There are many possible business applications in several environments that may use this capability. For example, an MRP, Inventory, or Manufacturing business application could use this to communicate Item Bill of Material information.

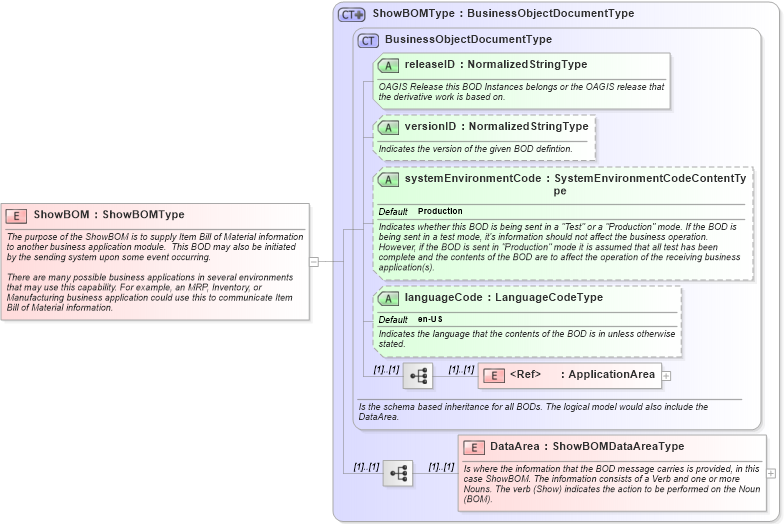

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema showbom_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ShowBOMType in schema showbom_xsdXSD Diagram of ShowBOM in schema showbom_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ShowBOM" type="ShowBOMType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ShowBOM is to supply Item Bill of Material information to another business application module.  This BOD may also be initiated by the sending system upon some event occurring.

There are many possible business applications in several environments that may use this capability. For example, an MRP, Inventory, or Manufacturing business application could use this to communicate Item Bill of Material information.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
