Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: GetProductionOrder
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:GetProductionOrderType
Containing Schema: GetProductionOrder.xsd
Abstract
Documentation:
The purpose of the GetProductionOrder is to enable an business application module to request specific Production Order information from another business application module. The reply to this is the ShowProductionOrder.

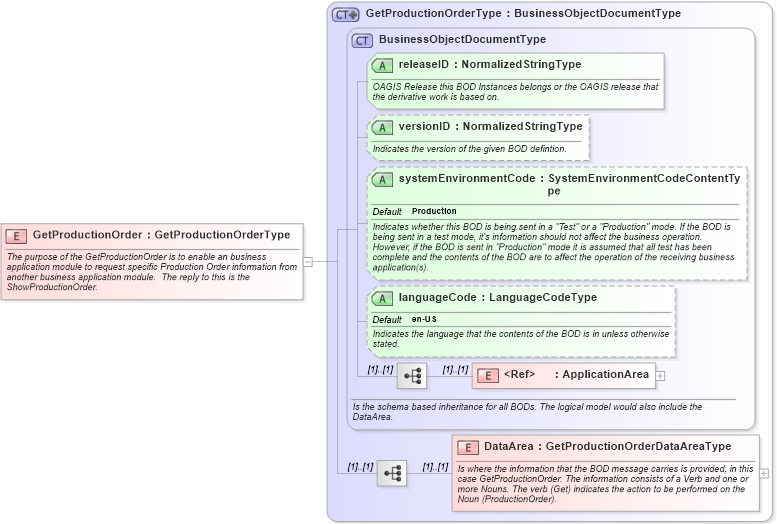

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema getproductionorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into GetProductionOrderType in schema getproductionorder_xsdXSD Diagram of GetProductionOrder in schema getproductionorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="GetProductionOrder" type="GetProductionOrderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the GetProductionOrder is to enable an business application module to request specific Production Order information from another business application module.  The reply to this is the ShowProductionOrder.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
