Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ProcessMoveWIP
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ProcessMoveWIPType
Containing Schema: ProcessMoveWIP.xsd
Abstract
Documentation:
The purpose of the ProcessMoveWIP is to notify a Manufacturing Application of the progression through the production processing steps or operations of a product being made on a production order. The business environments most likely to require this capability are any type of manufacturing scenario. This BOD communicates which processing step the product is coming from and which step it is being moved to, along with the quantity moving and the time this event occurred. This BOD assumes that the applications involved in this business scenario will have already synchronized the production item and its BOM/Routing information.

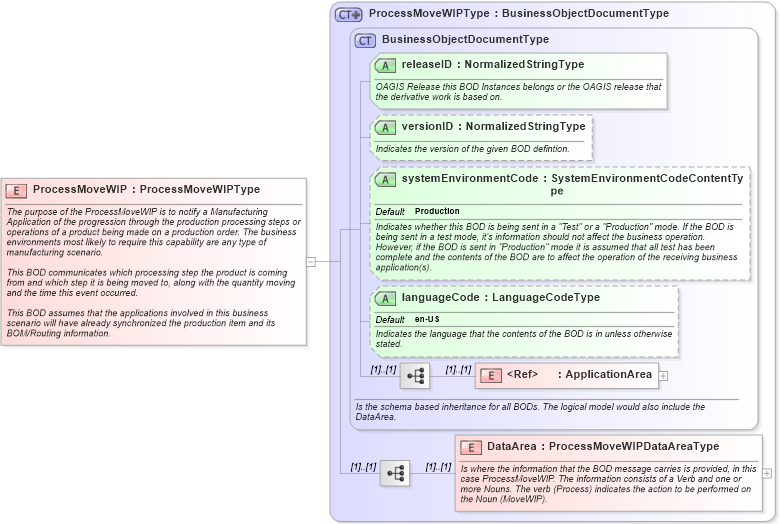

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema processmovewip_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ProcessMoveWIPType in schema processmovewip_xsdXSD Diagram of ProcessMoveWIP in schema processmovewip_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ProcessMoveWIP" type="ProcessMoveWIPType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ProcessMoveWIP is to notify a Manufacturing Application of the progression through the production processing steps or operations of a product being made on a production order. The business environments most likely to require this capability are any type of manufacturing scenario.

This BOD communicates which processing step the product is coming from and which step it is being moved to, along with the quantity moving and the time this event occurred.

This BOD assumes that the applications involved in this business scenario will have already synchronized the production item and its BOM/Routing information.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
