Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: AcknowledgeShipmentUnit
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:AcknowledgeShipmentUnitType
Containing Schema: AcknowledgeShipmentUnit.xsd
Abstract
Documentation:
The purpose of the AcknowledgeShipmentUnit is to enable an application to respond to a ShipmentUnit information from another business application module in order to accept or reject the request to Process. The AcknowledgeShipmentUnit is typically published from the business application that is is receiving the request to Process the ShipmentUnit information This may also occur across enterprises. The AcknowledgeShipmentUnit is the response for the ProcessShipmentUnit to indicate success or failure. If the receiving system needs to make changes to the ShipmentUnit then the ChangeShipmentUnit can be used a coresponding RespondShipmentUnit accepts the changes or indicates additional changes.

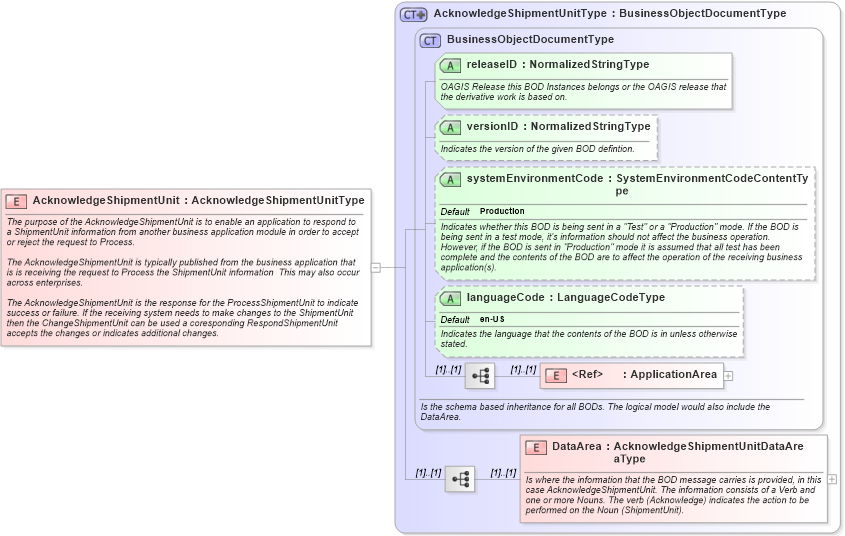

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema acknowledgeshipmentunit_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into AcknowledgeShipmentUnitType in schema acknowledgeshipmentunit_xsdXSD Diagram of AcknowledgeShipmentUnit in schema acknowledgeshipmentunit_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="AcknowledgeShipmentUnit" type="AcknowledgeShipmentUnitType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the AcknowledgeShipmentUnit is to enable an application to respond to a ShipmentUnit information from another business application module in order to accept or reject the request to Process.

The AcknowledgeShipmentUnit is typically published from the business application that is is receiving the request to Process the ShipmentUnit information  This may also occur across enterprises.

The AcknowledgeShipmentUnit is the response for the ProcessShipmentUnit to indicate success or failure. If the receiving system needs to make changes to the ShipmentUnit then the ChangeShipmentUnit can be used a coresponding RespondShipmentUnit accepts the changes or indicates additional changes.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
