Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: UpdateOnlineOrder
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:UpdateOnlineOrderType
Containing Schema: UpdateOnlineOrder.xsd
Abstract
Documentation:
The purpose of the UpdateOnlineOrder is to enable an application to provide online shopping OnlineOrders from another business application module. The UpdateOnlineOrder is provided in response to the ProcessOnlineOrder in order to request a Update to process the OnlineOrder. The Chagne is directed from the owner of the information (the receiver of the Process) the originator of the Process.

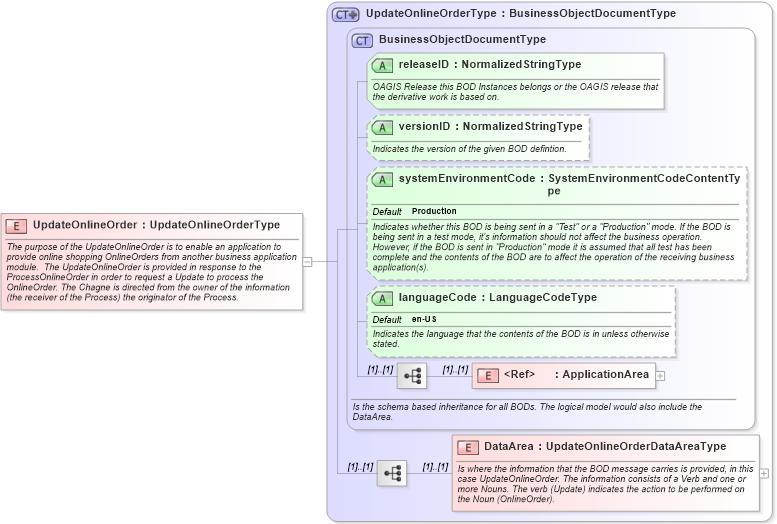

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema updateonlineorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into UpdateOnlineOrderType in schema updateonlineorder_xsdXSD Diagram of UpdateOnlineOrder in schema updateonlineorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="UpdateOnlineOrder" type="UpdateOnlineOrderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the UpdateOnlineOrder is to enable an application to provide online shopping OnlineOrders from another business application module.  The UpdateOnlineOrder is provided in response to the ProcessOnlineOrder in order to request a Update to process the OnlineOrder. The Chagne is directed from the owner of the information (the receiver of the Process) the originator of the Process.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
