Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: UpdateOpportunity
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:UpdateOpportunityType
Containing Schema: UpdateOpportunity.xsd
Abstract
Documentation:
The purpose of the UpdateOpportunity is to enable an application to provide Opportunity information from one business application to another business application. The UpdateOpportunityis provided in response to the ProcessCart in order to request a Update to process the cart. The Chagne is directed from the owner of the information (the receiver of the Process) the originator of the Process.

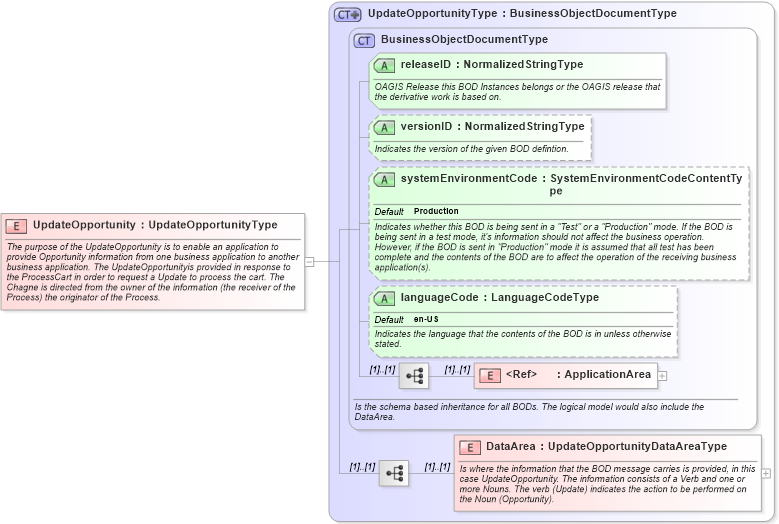

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema updateopportunity_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into UpdateOpportunityType in schema updateopportunity_xsdXSD Diagram of UpdateOpportunity in schema updateopportunity_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="UpdateOpportunity" type="UpdateOpportunityType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the UpdateOpportunity is to enable an application to provide Opportunity information from one business application to another business application. The UpdateOpportunityis provided in response to the ProcessCart in order to request a Update to process the cart. The Chagne is directed from the owner of the information (the receiver of the Process) the originator of the Process.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
