Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: AllocateCostingActivityType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:BusinessObjectDocumentType
Containing Schema: AllocateCostingActivity.xsd
Abstract

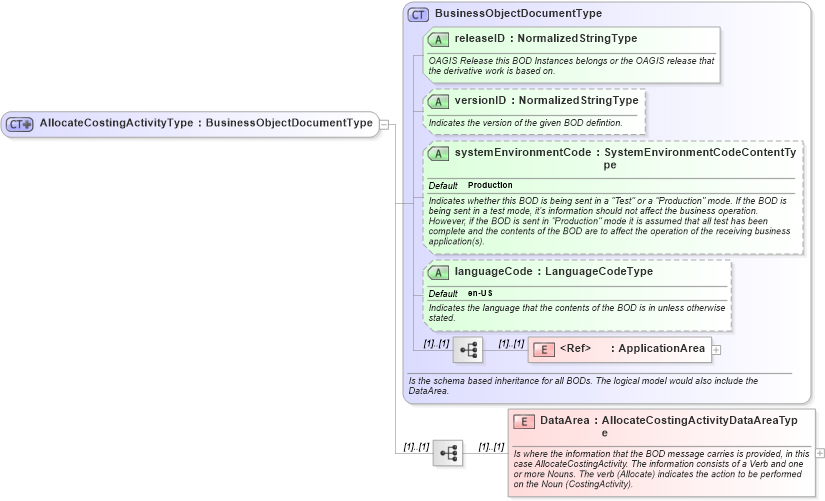

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema allocatecostingactivity_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of AllocateCostingActivityType in schema allocatecostingactivity_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="AllocateCostingActivityType">
    <xsd:complexContent>
        <xsd:extension base="BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="AllocateCostingActivityDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is where the information that the BOD message carries is provided, in this case AllocateCostingActivity. The information consists of a Verb and one or more Nouns. The verb (Allocate) indicates the action to be performed on the Noun (CostingActivity).</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:AllocateCostingActivity
