Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: AddPurchaseOrder
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:AddPurchaseOrderType
Containing Schema: AddPurchaseOrder.xsd
Abstract
Documentation:
AddPurchaseOrder is being deprecated as of OAGIS 9.0. AddPurchaseOrder will be made available for the next three releases. OAGi recommend using ProcessPurchaseOrder for all new development. The purpose of the Add PurchaseOrder Business Service Request is to communicate from one business application to one or more other business applications that a Purchase Order has been added or needs to be added, depending on the business case. There are many possible business applications in several environments that may use this capabilit

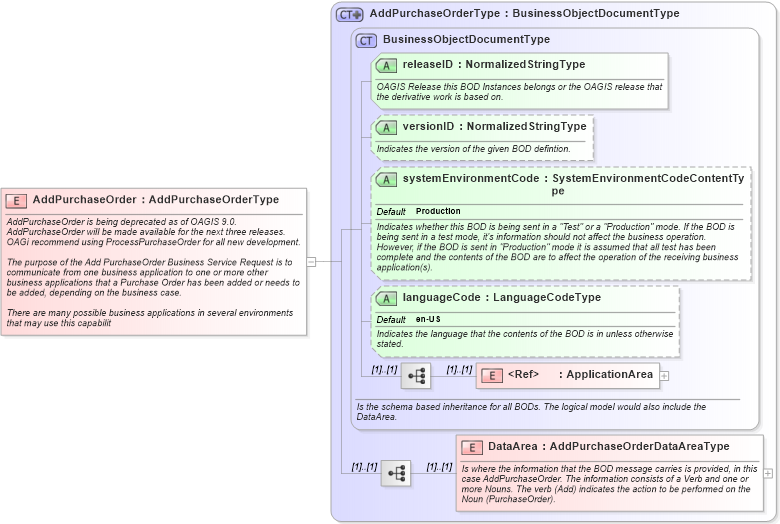

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema addpurchaseorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into AddPurchaseOrderType in schema addpurchaseorder_xsdXSD Diagram of AddPurchaseOrder in schema addpurchaseorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="AddPurchaseOrder" type="AddPurchaseOrderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">AddPurchaseOrder is being deprecated as of OAGIS 9.0. AddPurchaseOrder will be made available for the next three releases. OAGi recommend using ProcessPurchaseOrder for all new development.

The purpose of the Add PurchaseOrder Business Service Request is to communicate from one business application to one or more other business applications that a Purchase Order has been added or needs to be added, depending on the business case.

There are many possible business applications in several environments that may use this capabilit</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
