Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: AddQuote
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:AddQuoteType
Containing Schema: AddQuote.xsd
Abstract
Documentation:
AddQuote is being deprecated as of OAGIS 9.0. AddQuote will be made available for the next three releases. OAGi recommend using ProcessQuote for all new development. The purpose of the AddQuote is to communicate from one business application to one or more other business applications that additional data related to a quote has been added or needs to be added, depending on the business case.

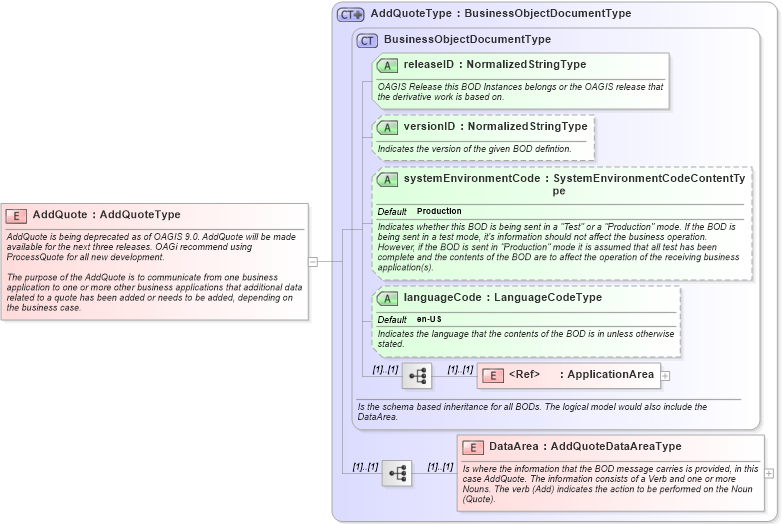

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema addquote_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into AddQuoteType in schema addquote_xsdXSD Diagram of AddQuote in schema addquote_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="AddQuote" type="AddQuoteType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">AddQuote is being deprecated as of OAGIS 9.0. AddQuote will be made available for the next three releases. OAGi recommend using ProcessQuote for all new development.

The purpose of the AddQuote is to communicate from one business application to one or more other business applications that additional data related to a quote has been added or needs to be added, depending on the business case.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
