Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: UpdatePurchaseOrder
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:UpdatePurchaseOrderType
Containing Schema: UpdatePurchaseOrder.xsd
Abstract
Documentation:
The purpose of the Update Purchaseorder is to request another business application to make Updates to an existing Purchase Order. This Update must refer to the original document and/or item ordered. The Update processing assumes replacement of fields sent, with the exception the identifying fields of the Purchase Order. If any of these key fields require changing, (i.e. the PurchaseOrder Document Id or a LineNumber) that constitutes a cancellation of the request and/or the addition of another Purchase Order.

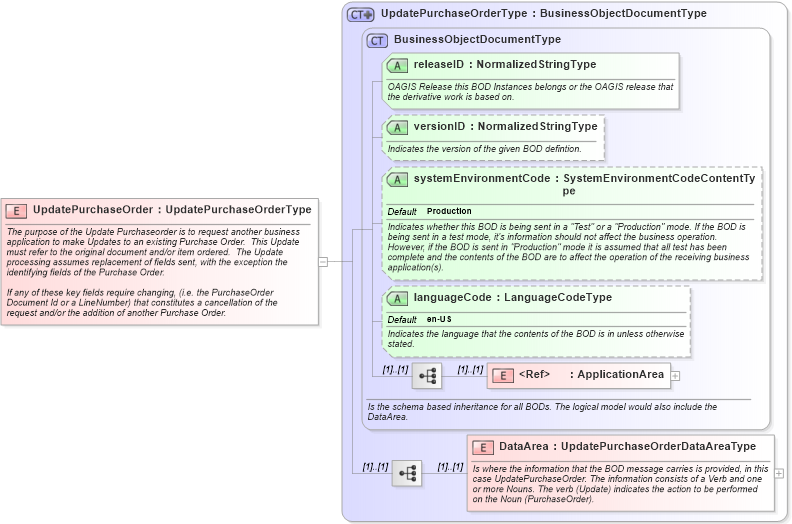

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema updatepurchaseorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into UpdatePurchaseOrderType in schema updatepurchaseorder_xsdXSD Diagram of UpdatePurchaseOrder in schema updatepurchaseorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="UpdatePurchaseOrder" type="UpdatePurchaseOrderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the Update Purchaseorder is to request another business application to make Updates to an existing Purchase Order.  This Update must refer to the original document and/or item ordered.  The Update processing assumes replacement of fields sent, with the exception the identifying fields of the Purchase Order.

If any of these key fields require changing, (i.e. the PurchaseOrder Document Id or a LineNumber) that constitutes a cancellation of the request and/or the addition of another Purchase Order.
</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
