Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: GetListItemMaster
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:GetListItemMasterType
Containing Schema: GetListItemMaster.xsd
Abstract
Documentation:
In an effort to simpilify the usage of the verbs the GetListItemMaster BOD is being depricated as of OAGIS 9.0, the GetListItemMaster will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS. As such for all new development we recommend that you use the GetItemMaster BOD which may serve the same function of the GetListItemMaster BOD. The purpose of the GetListItemMaster is to enable a business application module to request summary information concerning an ItemMaster or ITEMs from another business application. This type of functionality is limited to the capabilities of the responding application and needs to be determined during the implementation project. The response to this request is the ListItemMaster. This BOD does not usually cause updates to occur.

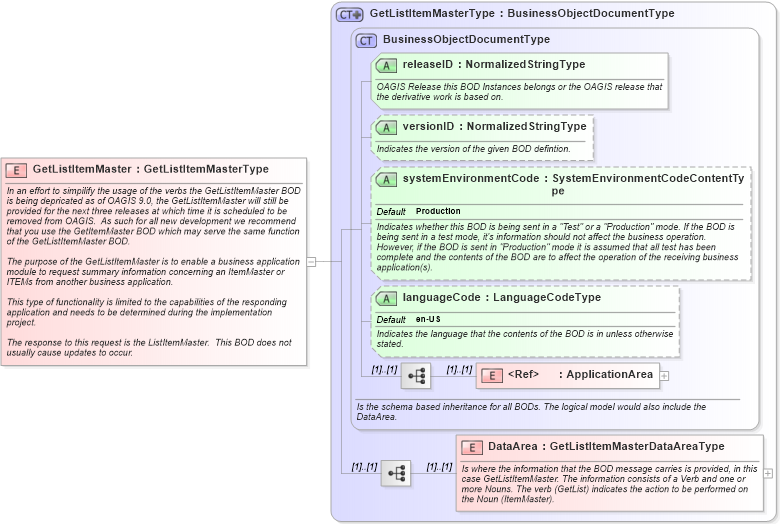

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema getlistitemmaster_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into GetListItemMasterType in schema getlistitemmaster_xsdXSD Diagram of GetListItemMaster in schema getlistitemmaster_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="GetListItemMaster" type="GetListItemMasterType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">In an effort to simpilify the usage of the verbs the GetListItemMaster BOD is being depricated as of OAGIS 9.0, the GetListItemMaster will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS.  As such for all new development we recommend that you use the GetItemMaster BOD which may serve the same function of the GetListItemMaster BOD.

The purpose of the GetListItemMaster is to enable a business application module to request summary information concerning an ItemMaster or ITEMs from another business application.

This type of functionality is limited to the capabilities of the responding application and needs to be determined during the implementation project.

The response to this request is the ListItemMaster.  This BOD does not usually cause updates to occur.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
