Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: GetWIPStatus
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:GetWIPStatusType
Containing Schema: GetWIPStatus.xsd
Abstract
Documentation:
The purpose of the GetWIPStatus is to notify a Manufacturing Application of the progress of a production order at a point in time. The business environments most likely to require this capability are any type of manufacturing scenario where BODs for individual manufacturing transactions and events are not utilized. This BOD communicates what quantities of end product reside at which processing steps along with the time this snapshot view was taken. The response to this BOD is ShowWIPStatus.

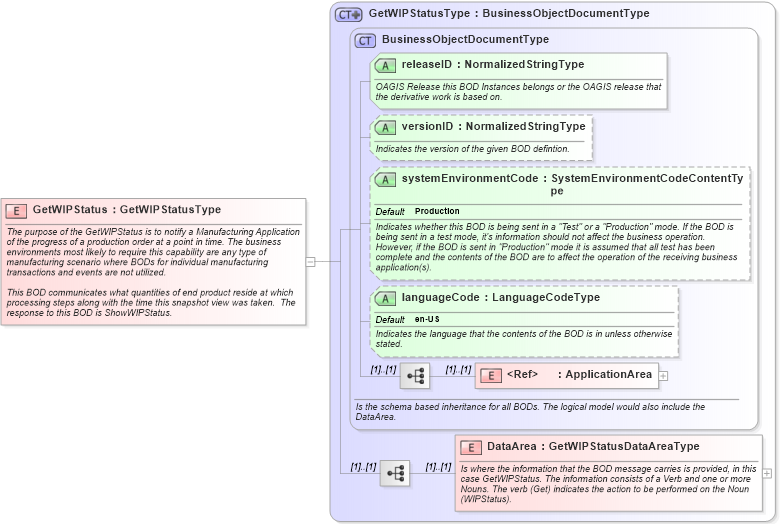

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema getwipstatus_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into GetWIPStatusType in schema getwipstatus_xsdXSD Diagram of GetWIPStatus in schema getwipstatus_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="GetWIPStatus" type="GetWIPStatusType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the GetWIPStatus is to notify a Manufacturing Application of the progress of a production order at a point in time. The business environments most likely to require this capability are any type of manufacturing scenario where BODs for individual manufacturing transactions and events are not utilized.

This BOD communicates what quantities of end product reside at which processing steps along with the time this snapshot view was taken.  The response to this BOD is ShowWIPStatus.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
