Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: GetListBOM
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:GetListBOMType
Containing Schema: GetListBOM.xsd
Abstract
Documentation:
In an effort to simpilify the usage of the verbs the GetListBOM BOD is being depricated as of OAGIS 9.0, the GetListBOM will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS. As such for all new development we recommend that you use the GetBOM BOD which may serve the same function of the GetListBOM BOD. The purpose of the GetListBOM is to enable an application or component to request a summary list of Bill of Material information from another business application or component. The response to the GetListBOM is the ListBOM The GwtListBOM also enables the retrieval of information across several documents by using selection fields. An example of this could be requesting all Bills of Material for a specific ITEM. This type of functionality is limited to the capabilities of the responding application and needs to be determined during the implementation project. There are many possible business applications in several environments that may use this capability. For example, an MRP, Inventory, or Manufacturing business application could use this to communicate Item Bill of Material information.

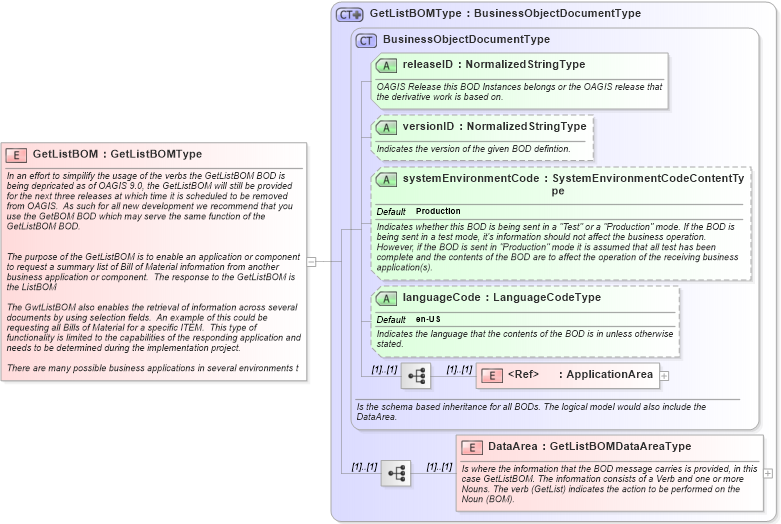

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema getlistbom_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into GetListBOMType in schema getlistbom_xsdXSD Diagram of GetListBOM in schema getlistbom_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="GetListBOM" type="GetListBOMType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">In an effort to simpilify the usage of the verbs the GetListBOM BOD is being depricated as of OAGIS 9.0, the GetListBOM will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS.  As such for all new development we recommend that you use the GetBOM BOD which may serve the same function of the GetListBOM BOD.


The purpose of the GetListBOM is to enable an application or component to request a summary list of Bill of Material information from another business application or component.  The response to the GetListBOM is the ListBOM

The GwtListBOM also enables the retrieval of information across several documents by using selection fields.  An example of this could be requesting all Bills of Material for a specific ITEM.  This type of functionality is limited to the capabilities of the responding application and needs to be determined during the implementation project.

There are many possible business applications in several environments that may use this capability. For example, an MRP, Inventory, or Manufacturing business application could use this to communicate Item Bill of Material information.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
