Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ShowDebitTransfer
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ShowDebitTransferType
Containing Schema: ShowDebitTransfer.xsd
Abstract
Documentation:
The purpose of the ShowDebitTransfer is to enable an application to request specific DebitTransfer information from another business application module. The response to the ShowDebitTransfer is the ShowDebitTransfer.

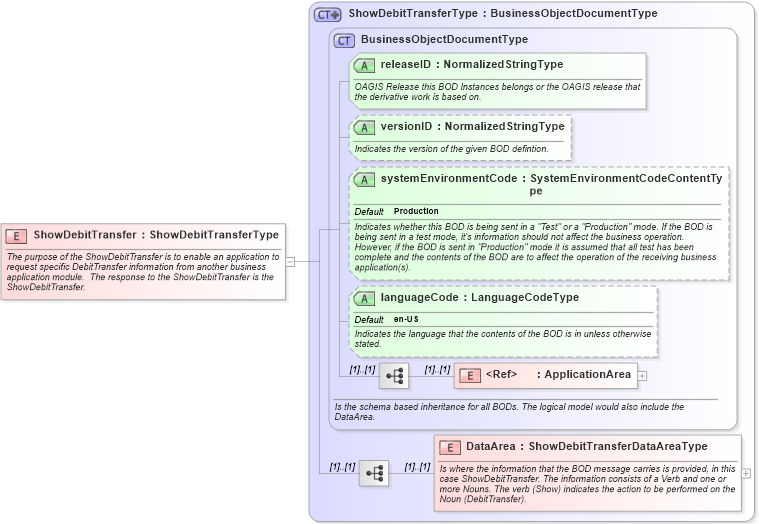

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema showdebittransfer_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ShowDebitTransferType in schema showdebittransfer_xsdXSD Diagram of ShowDebitTransfer in schema showdebittransfer_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ShowDebitTransfer" type="ShowDebitTransferType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ShowDebitTransfer is to enable an application to request specific DebitTransfer information from another business application module.  The response to the ShowDebitTransfer is the ShowDebitTransfer.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
