Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: GetListRouting
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:GetListRoutingType
Containing Schema: GetListRouting.xsd
Abstract
Documentation:
In an effort to simpilify the usage of the verbs the GetListRouting BOD is being depricated as of OAGIS 9.0, the GetListRouting will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS. As such for all new development we recommend that you use the GetRouting BOD which may serve the same function of the GetListRouting BOD. The purpose of the GetListRouting is to communicate to a business application component or module a request for a summary list of a Routing structure or structures to be returned in a ListRouting.

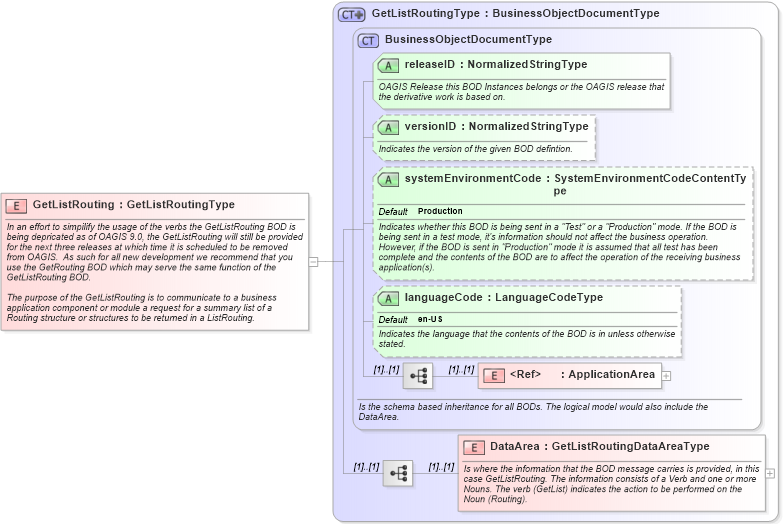

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema getlistrouting_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into GetListRoutingType in schema getlistrouting_xsdXSD Diagram of GetListRouting in schema getlistrouting_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="GetListRouting" type="GetListRoutingType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">In an effort to simpilify the usage of the verbs the GetListRouting BOD is being depricated as of OAGIS 9.0, the GetListRouting will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS.  As such for all new development we recommend that you use the GetRouting BOD which may serve the same function of the GetListRouting BOD.

The purpose of the GetListRouting is to communicate to a business application component or module a request for a summary list of a Routing structure or structures to be returned in a ListRouting. </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
