Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ProcessMergeWIP
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ProcessMergeWIPType
Containing Schema: ProcessMergeWIP.xsd
Abstract
Documentation:
The purpose of the ProcessMergeWIP BOD is to notify a Manufacturing Application of the creation of a single production lot from multiple production lots of a product being made on a production order. The business environment most likely to require this capability is a lot based discrete manufacturing scenario. This BOD communicates the originating lots, the resulting lot, lot quantities, and the processing step at which this event occurred, along with the time at which this event occurred.

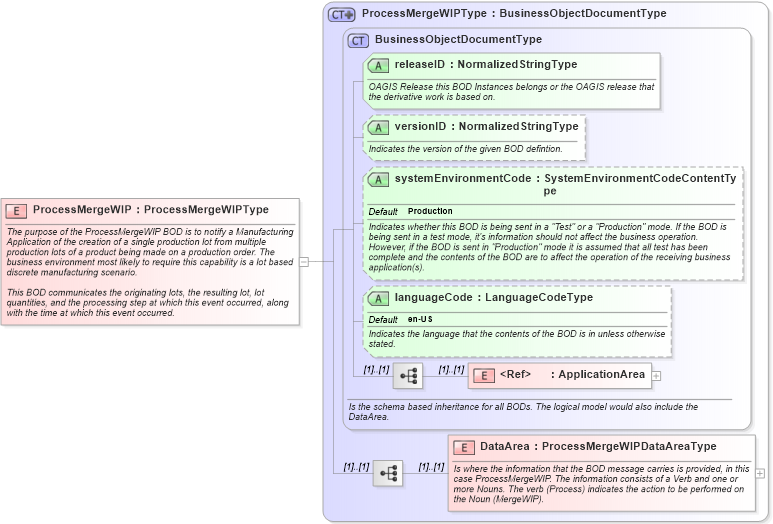

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema processmergewip_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ProcessMergeWIPType in schema processmergewip_xsdXSD Diagram of ProcessMergeWIP in schema processmergewip_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ProcessMergeWIP" type="ProcessMergeWIPType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ProcessMergeWIP BOD is to notify a Manufacturing Application of the creation of a single production lot from multiple production lots of a product being made on a production order. The business environment most likely to require this capability is a lot based discrete manufacturing scenario.

This BOD communicates the originating lots, the resulting lot, lot quantities, and the processing step at which this event occurred, along with the time at which this event occurred.
</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
