Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: GetMoveInventory
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:GetMoveInventoryType
Containing Schema: GetMoveInventory.xsd
Abstract
Documentation:
The purpose of the GetMoveInventory is to enable an application or component to request an MoveInventory document from another business application or component. The response to the GetMoveInventory is is the ListMoveInventory. The GetMoveInventory also enables the retrieval of information across several documents by using selection fields. This type of functionality is limited to the capabilities of the responding application and needs to be determined during the implementation project.

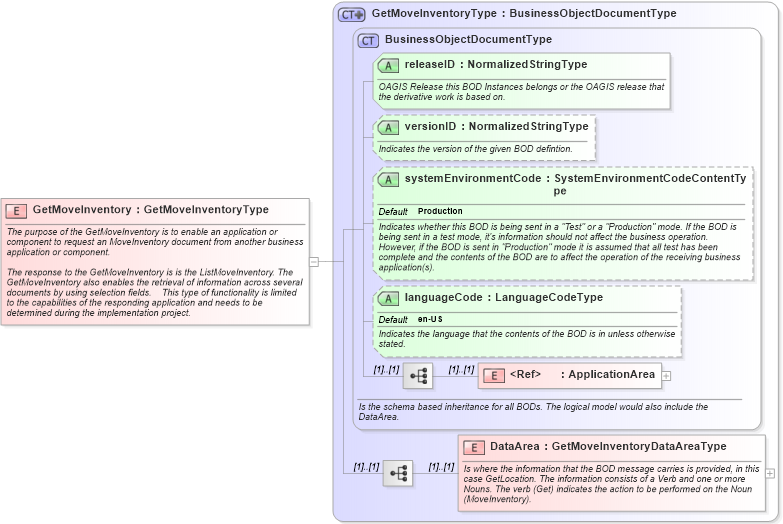

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema getmoveinventory_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into GetMoveInventoryType in schema getmoveinventory_xsdXSD Diagram of GetMoveInventory in schema getmoveinventory_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="GetMoveInventory" type="GetMoveInventoryType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the GetMoveInventory is to enable an application or component to request an MoveInventory document from another business application or component.

The response to the GetMoveInventory is is the ListMoveInventory. The GetMoveInventory also enables the retrieval of information across several documents by using selection fields.    This type of functionality is limited to the capabilities of the responding application and needs to be determined during the implementation project.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
