Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ListProductionOrder
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ListProductionOrderType
Containing Schema: ListProductionOrder.xsd
Abstract
Documentation:
In an effort to simpilify the usage of the verbs the ListProductionOrder BOD is being depricated as of OAGIS 9.0, the ListProductionOrder will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS. As such for all new development we recommend that you use the ShowProductionOrder BOD which may serve the same function of the ListProductionOrder BOD. The purpose of the ListProductionOrder is to enable an business software component to respond to a GetListProductionOrder request or to proactively send a listing of summary information about Production Orders to another business software component
Collapse XSD Schema Diagram:

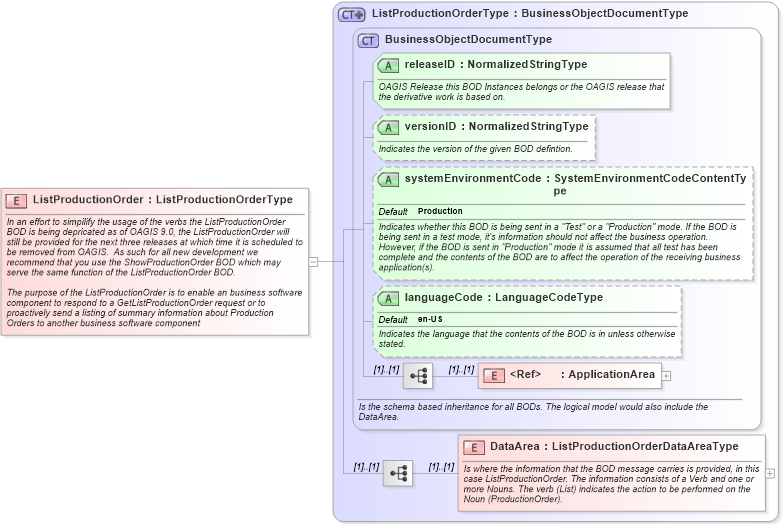

Drilldown into DataArea in schema listproductionorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ListProductionOrderType in schema listproductionorder_xsdXSD Diagram of ListProductionOrder in schema listproductionorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ListProductionOrder" type="ListProductionOrderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">In an effort to simpilify the usage of the verbs the ListProductionOrder BOD is being depricated as of OAGIS 9.0, the ListProductionOrder will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS.  As such for all new development we recommend that you use the ShowProductionOrder BOD which may serve the same function of the ListProductionOrder BOD.

The purpose of the ListProductionOrder is to enable an business software component to respond to a GetListProductionOrder request or to proactively send a listing of summary information about Production Orders to another business software component

</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
