Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: CancelProductionOrder
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:CancelProductionOrderType
Containing Schema: CancelProductionOrder.xsd
Abstract
Documentation:
The purpose of the CancelProductionOrder is to notify a Manufacturing Application of the need to cancel a previous order to make a product in a specific quantity, for a specific need by date. This BOD may be used to cancel an entire Production Order, or a specific line on the production order. Processing Note: This cancel must refer to the original document and/or item ordered. To cancel the entire order, include only the Header information for the instance of the Production Order you wish to cancel. To cancel a line or several lines, each line to be cancelled must be included in the request.

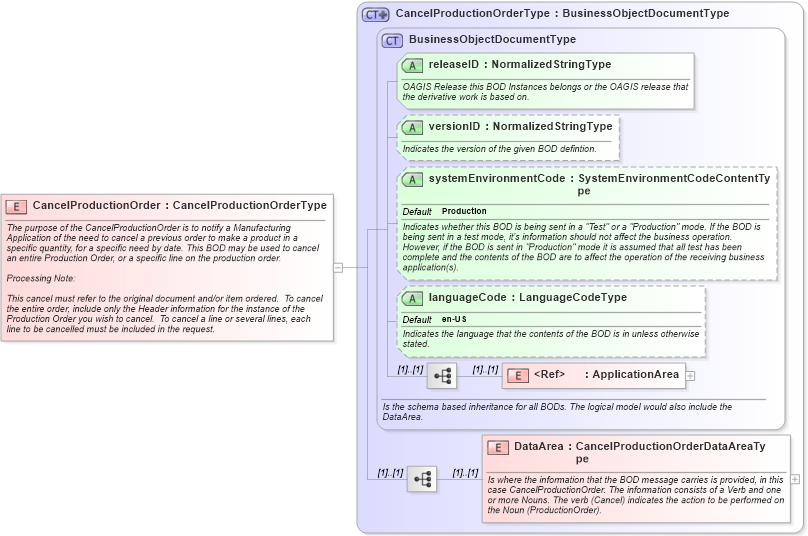

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema cancelproductionorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into CancelProductionOrderType in schema cancelproductionorder_xsdXSD Diagram of CancelProductionOrder in schema cancelproductionorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="CancelProductionOrder" type="CancelProductionOrderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the CancelProductionOrder is to notify a Manufacturing Application of the need to cancel a previous order to make a product in a specific quantity, for a specific need by date. This BOD may be used to cancel an entire Production Order, or a specific line on the production order.

Processing Note:

This cancel must refer to the original document and/or item ordered.  To cancel the entire order, include only the Header information for the instance of the Production Order you wish to cancel.  To cancel a line or several lines, each line to be cancelled must be included in the request.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
