Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: GetItemMaster
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:GetItemMasterType
Containing Schema: GetItemMaster.xsd
Abstract
Documentation:
The purpose of the GetItemMaster is to enable a business application module to request information concerning a specific ITEM from another business application. The reply to this BOD is the ShowItemMaster. There are many possible business applications in several environments that may use this capability. For example, an MRP, Inventory, or Manufacturing business application could use this to request item information.

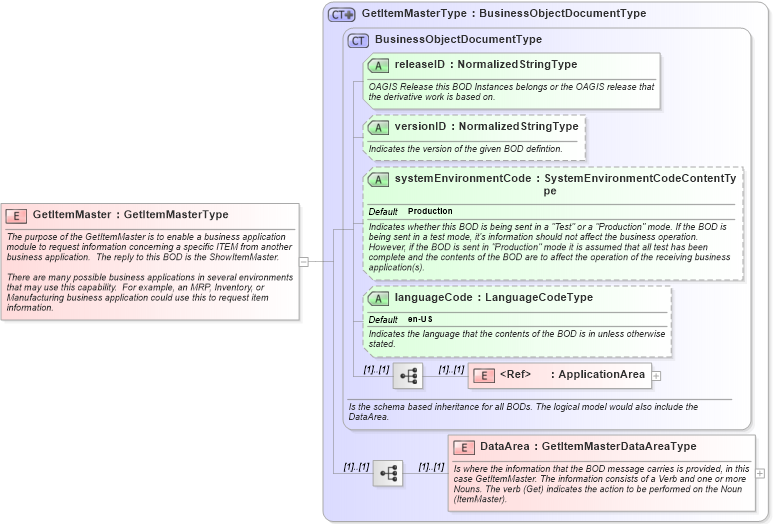

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema getitemmaster_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into GetItemMasterType in schema getitemmaster_xsdXSD Diagram of GetItemMaster in schema getitemmaster_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="GetItemMaster" type="GetItemMasterType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the GetItemMaster is to enable a business application module to request information concerning a specific ITEM from another business application.  The reply to this BOD is the ShowItemMaster.

There are many possible business applications in several environments that may use this capability.  For example, an MRP, Inventory, or Manufacturing business application could use this to request item information.
</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
