Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: GetReceivable
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:GetReceivableType
Containing Schema: GetReceivable.xsd
Abstract
Documentation:
The purpose of the GetReceivable is to enable an application to request specific Receivable information from another business application module. The response to the GetReceivable is the ShowReceivable.

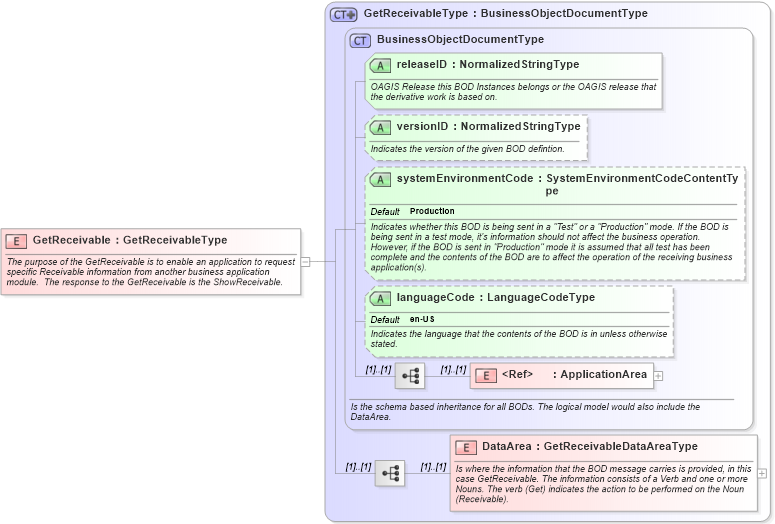

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema getreceivable_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into GetReceivableType in schema getreceivable_xsdXSD Diagram of GetReceivable in schema getreceivable_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="GetReceivable" type="GetReceivableType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the GetReceivable is to enable an application to request specific Receivable information from another business application module.  The response to the GetReceivable is the ShowReceivable.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
