Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ProcessRecoverWIP
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ProcessRecoverWIPType
Containing Schema: ProcessRecoverWIP.xsd
Abstract
Documentation:
The purpose of the ProcessRecoverWIP is to notify a Manufacturing Application of the creation of usable production materials from material previously considered to be unsuitable for production use. This is most often likely to represent a return to production of scrap material. The business environments most likely to require this capability are any type of manufacturing scenario. This BOD communicates what is being recovered, the quantity being recovered, and the processing step at which the recovered material is to re-enter the production process, along with the time at which this event occurred.

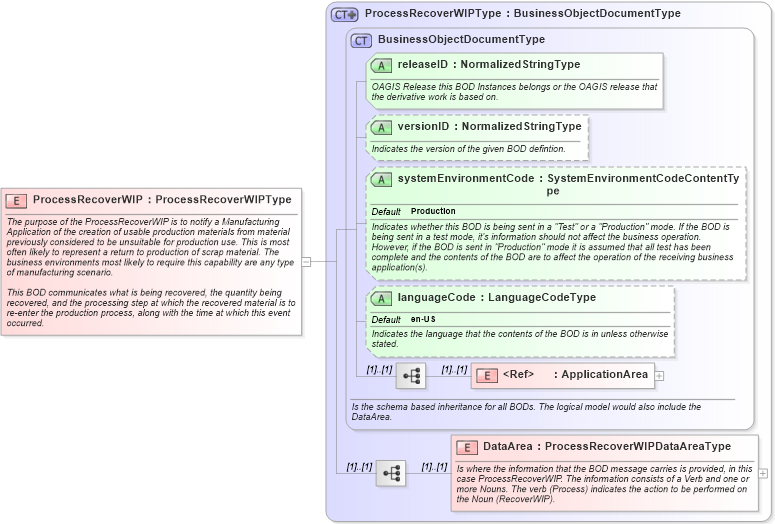

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema processrecoverwip_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ProcessRecoverWIPType in schema processrecoverwip_xsdXSD Diagram of ProcessRecoverWIP in schema processrecoverwip_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ProcessRecoverWIP" type="ProcessRecoverWIPType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ProcessRecoverWIP is to notify a Manufacturing Application of the creation of usable production materials from material previously considered to be unsuitable for production use. This is most often likely to represent a return to production of scrap material. The business environments most likely to require this capability are any type of manufacturing scenario.

This BOD communicates what is being recovered, the quantity being recovered, and the processing step at which the recovered material is to re-enter the production process, along with the time at which this event occurred.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
