Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ShowProductAvailability
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ShowProductAvailabilityType
Containing Schema: ShowProductAvailability.xsd
Abstract
Documentation:
The purpose of the ShowProductAvailability is to respond to a GetProductAvailability request or to initiate the passing of product availability data from a Production or Available to Promise (ATP) business application to an Order Management business application. The business process scenario is the Order Management application interacting with the Available to Promise or Production application in order to determine availability of a product for the customer. This scenario is commonly referred to as Make to Order or Build to Order.

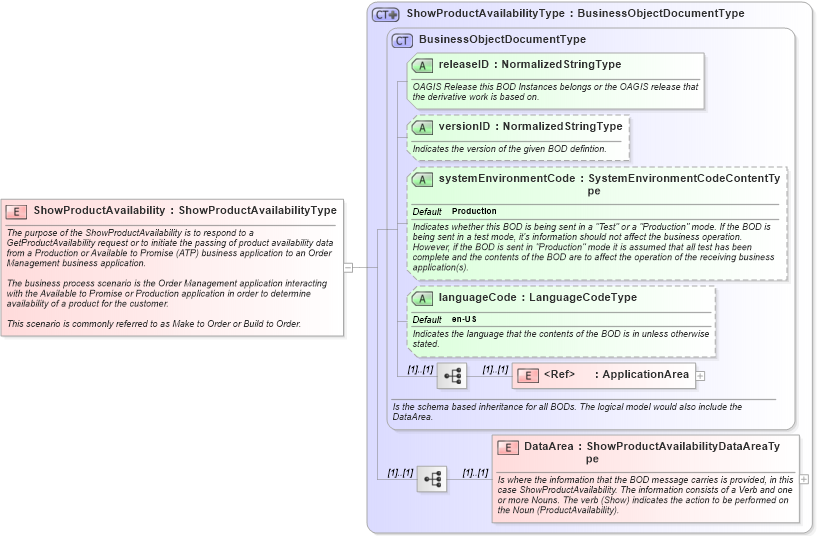

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema showproductavailability_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ShowProductAvailabilityType in schema showproductavailability_xsdXSD Diagram of ShowProductAvailability in schema showproductavailability_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ShowProductAvailability" type="ShowProductAvailabilityType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ShowProductAvailability is to respond to a GetProductAvailability request or to initiate the passing of product availability data from a Production or Available to Promise (ATP) business application to an Order Management business application.

The business process scenario is the Order Management application interacting with the Available to Promise or Production application in order to determine availability of a product for the customer.

This scenario is commonly referred to as Make to Order or Build to Order.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
