Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: AddSalesOrder
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:AddSalesOrderType
Containing Schema: AddSalesOrder.xsd
Abstract
Documentation:
AddSalesOrder is being deprecated as of OAGIS 9.0. AddSalesOrder will be made available for the next three releases. OAGi recommend using ProcessSalesOrder for all new development. The purpose of the Add Salesorder is to communicate from one business application to one or more other business applications that a Sales Order has been added or needs to be added, depending on the business case. This BOD commonly causes updates to occur.

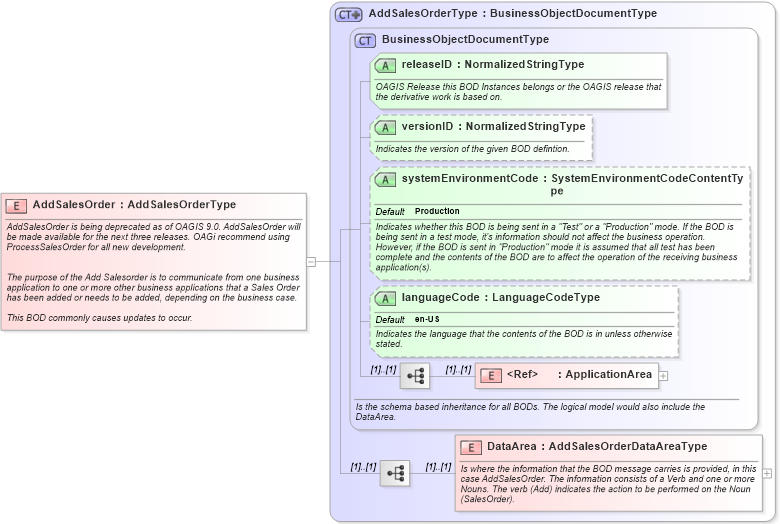

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema addsalesorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into AddSalesOrderType in schema addsalesorder_xsdXSD Diagram of AddSalesOrder in schema addsalesorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="AddSalesOrder" type="AddSalesOrderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">AddSalesOrder is being deprecated as of OAGIS 9.0. AddSalesOrder will be made available for the next three releases. OAGi recommend using ProcessSalesOrder for all new development.


The purpose of the Add Salesorder is to communicate from one business application to one or more other business applications that a Sales Order has been added or needs to be added, depending on the business case.

This BOD commonly causes updates to occur.
</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
