Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: GetListProductionOrder
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:GetListProductionOrderType
Containing Schema: GetListProductionOrder.xsd
Abstract
Documentation:
In an effort to simpilify the usage of the verbs the GetListProductionOrder BOD is being depricated as of OAGIS 9.0, the GetListProductionOrder will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS. As such for all new development we recommend that you use the GetProductionOrder BOD which may serve the same function of the GetListProductionOrder BOD. The purpose of the GetListProductionOrder is to enable an business software component to request summary Production Order information from another business application module. The response to this request is the ListProductionOrder. The GetListProductionOrder also enables the retrieval of information across several documents by using selection fields. An example of this could be requesting all ProductionOrder Lines for a specific Item. This type of functionality is limited to the capabilities of the responding application and needs to be determined during the implementation project.

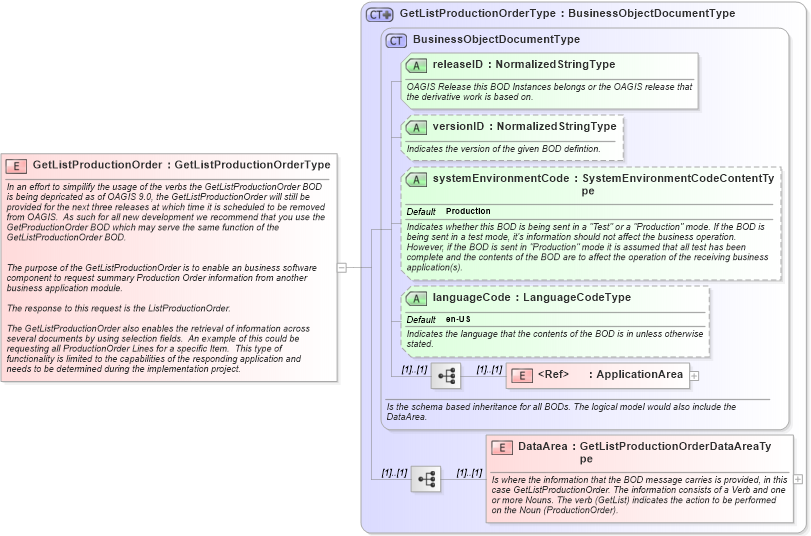

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema getlistproductionorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into GetListProductionOrderType in schema getlistproductionorder_xsdXSD Diagram of GetListProductionOrder in schema getlistproductionorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="GetListProductionOrder" type="GetListProductionOrderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">In an effort to simpilify the usage of the verbs the GetListProductionOrder BOD is being depricated as of OAGIS 9.0, the GetListProductionOrder will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS.  As such for all new development we recommend that you use the GetProductionOrder BOD which may serve the same function of the GetListProductionOrder BOD.


The purpose of the GetListProductionOrder is to enable an business software component to request summary Production Order information from another business application module.

The response to this request is the ListProductionOrder.

The GetListProductionOrder also enables the retrieval of information across several documents by using selection fields.  An example of this could be requesting all ProductionOrder Lines for a specific Item.  This type of functionality is limited to the capabilities of the responding application and needs to be determined during the implementation project. </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
