Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: GetListMaintenanceOrder
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:GetListMaintenanceOrderType
Containing Schema: GetListMaintenanceOrder.xsd
Abstract
Documentation:
In an effort to simpilify the usage of the verbs the GetListMaintenanceOrder BOD is being depricated as of OAGIS 9.0, the GetListMaintenanceOrder will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS. As such for all new development we recommend that you use the GetMaintenanceOrder BOD which may serve the same function of the GetListMaintenanceOrder BOD. The purpose of the GetList MaintenanceOrder Business Object Document is to enable a business application module to request information containing summary information for one or more MaintenanceOrder. The response to this request is the List. The GetListMaintenanceOrder enables the retrieval of information across several documents by using selection fields. An example of this could be requesting all Resource Component occurrences for a specific MaintenanceOperation. This type of functionality is limited to the capabilities of the responding application and needs to be determined during the implementation project.

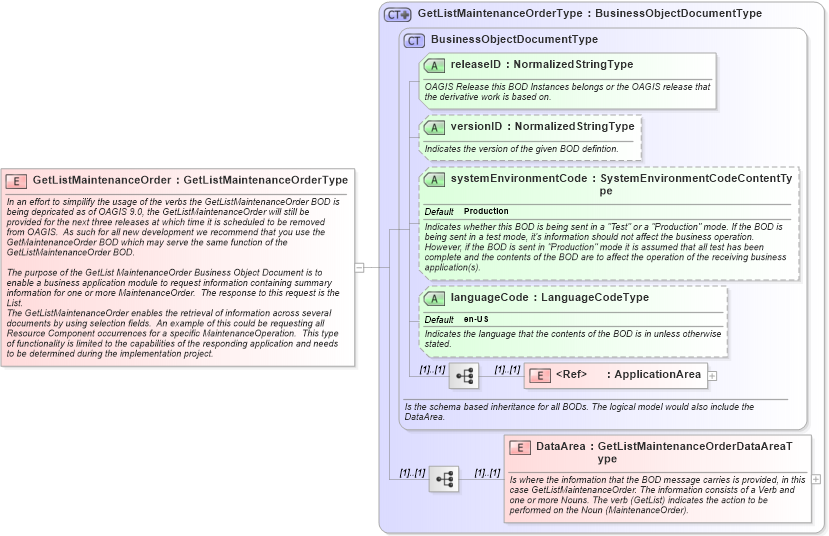

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema getlistmaintenanceorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into GetListMaintenanceOrderType in schema getlistmaintenanceorder_xsdXSD Diagram of GetListMaintenanceOrder in schema getlistmaintenanceorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="GetListMaintenanceOrder" type="GetListMaintenanceOrderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">In an effort to simpilify the usage of the verbs the GetListMaintenanceOrder BOD is being depricated as of OAGIS 9.0, the GetListMaintenanceOrder will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS.  As such for all new development we recommend that you use the GetMaintenanceOrder BOD which may serve the same function of the GetListMaintenanceOrder BOD.

The purpose of the GetList MaintenanceOrder Business Object Document is to enable a business application module to request information containing summary information for one or more MaintenanceOrder.  The response to this request is the List.
The GetListMaintenanceOrder enables the retrieval of information across several documents by using selection fields.  An example of this could be requesting all Resource Component occurrences for a specific MaintenanceOperation.  This type of functionality is limited to the capabilities of the responding application and needs to be determined during the implementation project.
</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
