Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: AcknowledgeOpportunity
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:AcknowledgeOpportunityType
Containing Schema: AcknowledgeOpportunity.xsd
Abstract
Documentation:
The purpose of the AcknowledgeOpportunity is to enable an application to provide Opportunity information from one business application to another business application. The AcknowledgeOpportunity is provided in response to the ProcessOpportunity in order to accept or reject the request to process.

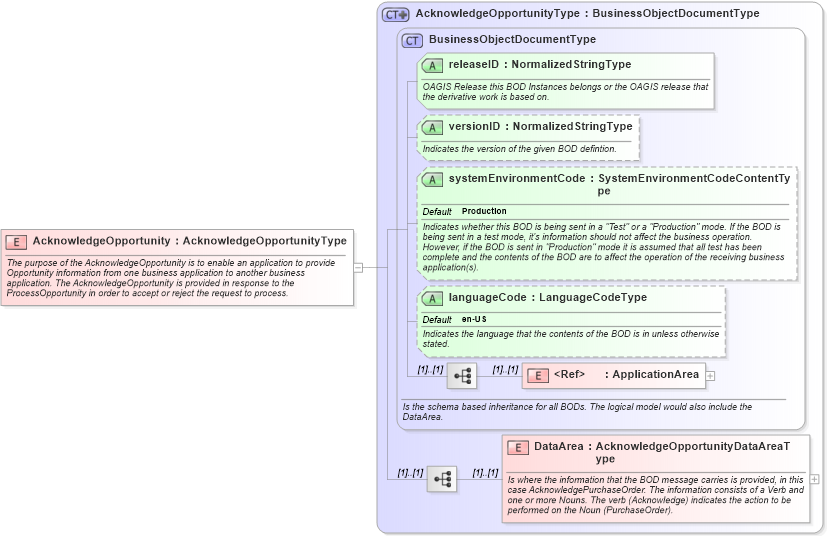

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema acknowledgeopportunity_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into AcknowledgeOpportunityType in schema acknowledgeopportunity_xsdXSD Diagram of AcknowledgeOpportunity in schema acknowledgeopportunity_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="AcknowledgeOpportunity" type="AcknowledgeOpportunityType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the AcknowledgeOpportunity is to enable an application to provide Opportunity information from one business application to another business application. The AcknowledgeOpportunity is provided in response to the ProcessOpportunity in order to accept or reject the request to process.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
