Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ConfirmBOD
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ConfirmBODType
Containing Schema: ConfirmBOD.xsd
Abstract
Documentation:
The ConfirmBOD may be returned for a given BOD, depending upon the value that the sender of the BOD set in the Confirmation field in sender. One NounOutcome component will be provided for each Noun Instance in the original BOD. Summary BOD-level information is reported in the Header, with noun-specific errors or warnings reported for each noun instance are reported in the NounOutcome component again one per occurance of the Noun Instance.

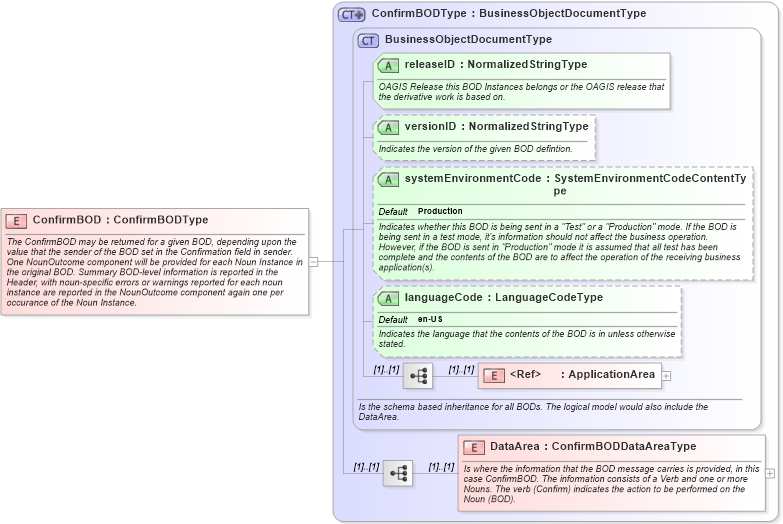

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema confirmbod_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ConfirmBODType in schema confirmbod_xsdXSD Diagram of ConfirmBOD in schema confirmbod_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ConfirmBOD" type="ConfirmBODType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The ConfirmBOD may be returned for a given BOD, depending upon the value that the sender of the BOD set in the Confirmation field in sender. One NounOutcome component will be provided for each Noun Instance in the original BOD. Summary BOD-level information is reported in the Header, with noun-specific errors or warnings reported for each noun instance are reported in the NounOutcome component again one per occurance of the Noun Instance.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
