Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ListRouting
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ListRoutingType
Containing Schema: ListRouting.xsd
Abstract
Documentation:
In an effort to simpilify the usage of the verbs the ListRouting BOD is being depricated as of OAGIS 9.0, the ListRouting will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS. As such for all new development we recommend that you use the ShowRouting BOD which may serve the same function of the ListRouting BOD. The purpose of the ListRouting is to communicate one or more summary listings of Routing information to another business application component. This may be the result of a GetList request or it may be initiated by some other business event.

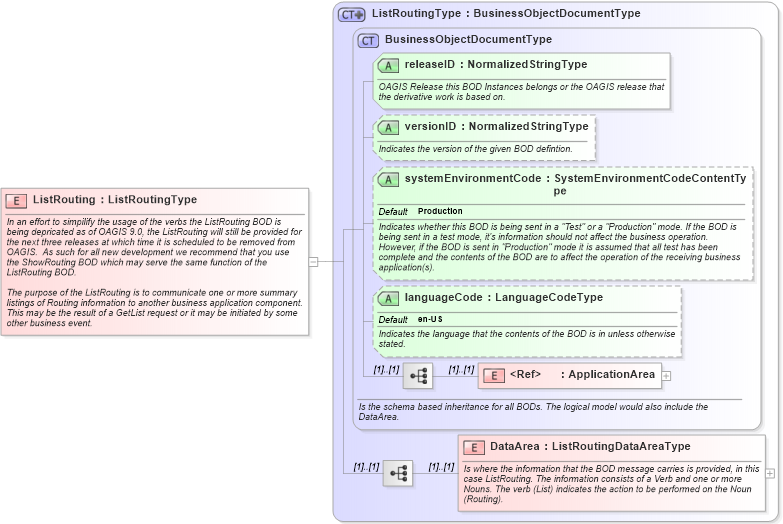

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema listrouting_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ListRoutingType in schema listrouting_xsdXSD Diagram of ListRouting in schema listrouting_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ListRouting" type="ListRoutingType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">In an effort to simpilify the usage of the verbs the ListRouting BOD is being depricated as of OAGIS 9.0, the ListRouting will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS.  As such for all new development we recommend that you use the ShowRouting BOD which may serve the same function of the ListRouting BOD.

The purpose of the ListRouting is to communicate one or more summary listings of Routing information to another business application component.  This may be the result of a GetList request or it may be initiated by some other business event. </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
