Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: SyncProjectMaster
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:SyncProjectMasterType
Containing Schema: SyncProjectMaster.xsd
Abstract
Documentation:
The purpose of the SyncProjectMaster is to enable all relevant sub-systems that submit transactions to the project accounting application to maintain valid values for the key project fields. The target applications for this update would include, but not necessarily be limited to: · Accounts Payable · Accounts Receivable · Budget · Order Management · Purchasing · Time and Labor · Travel and Expense

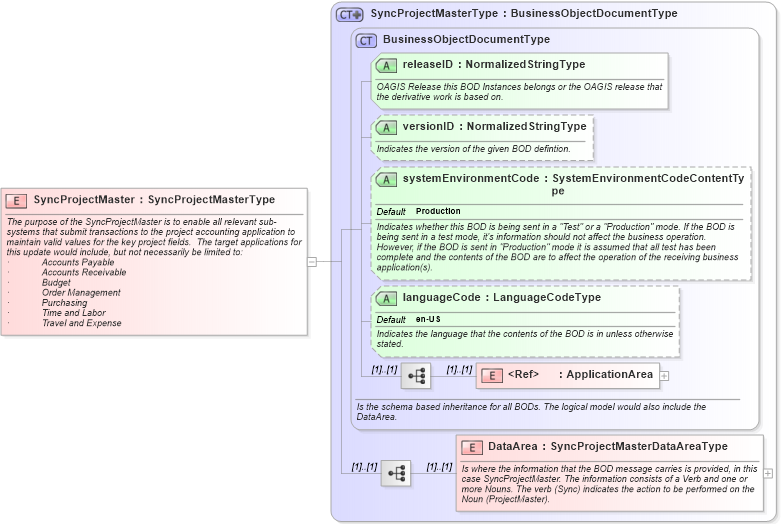

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema syncprojectmaster_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into SyncProjectMasterType in schema syncprojectmaster_xsdXSD Diagram of SyncProjectMaster in schema syncprojectmaster_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="SyncProjectMaster" type="SyncProjectMasterType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the SyncProjectMaster is to enable all relevant sub-systems that submit transactions to the project accounting application to maintain valid values for the key project fields.  The target applications for this update would include, but not necessarily be limited to:
·	Accounts Payable
·	Accounts Receivable
·	Budget
·	Order Management
·	Purchasing
·	Time and Labor
·	Travel and Expense
</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
