Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ReceivePurchaseOrder
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ReceivePurchaseOrderType
Containing Schema: ReceivePurchaseOrder.xsd
Abstract
Documentation:
ReceivePurchaseOrder is being deprecated as of OAGIS 9.0. ReceivePurchaseOrder will be made available for the next three releases. OAGi recommend using ProcessReceiveItem for all new development. The purpose of the Receive PurchaseOrder is to supply the information that a business application module requires to do receipt posting to against a Purchase Order. There are several possible business applications in several environments that may use this capability. This BOD may be used individually, or as part of a larger interface scenario.

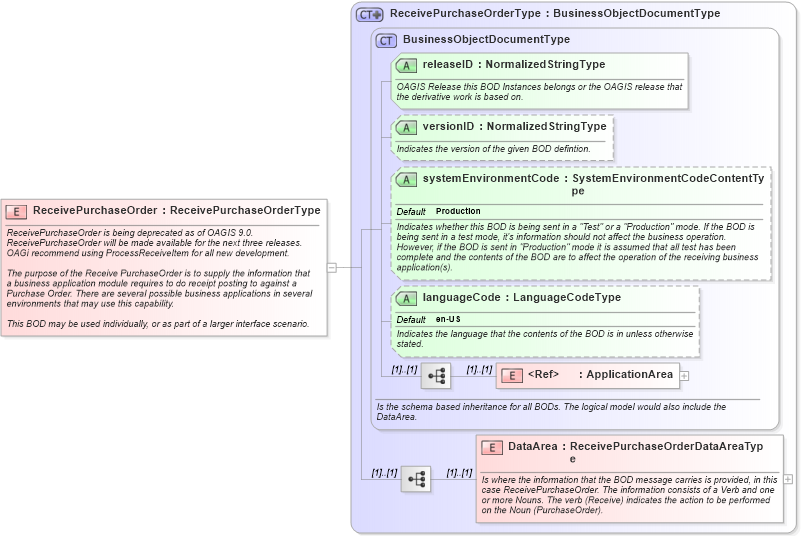

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema receivepurchaseorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ReceivePurchaseOrderType in schema receivepurchaseorder_xsdXSD Diagram of ReceivePurchaseOrder in schema receivepurchaseorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ReceivePurchaseOrder" type="ReceivePurchaseOrderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">ReceivePurchaseOrder is being deprecated as of OAGIS 9.0. ReceivePurchaseOrder will be made available for the next three releases. OAGi recommend using ProcessReceiveItem for all new development.

The purpose of the Receive PurchaseOrder is to supply the information that a business application module requires to do receipt posting to against a Purchase Order. There are several possible business applications in several environments that may use this capability.

This BOD may be used individually, or as part of a larger interface scenario.
</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
