Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ChangeRequisition
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ChangeRequisitionType
Containing Schema: ChangeRequisition.xsd
Abstract
Documentation:
The purpose of the ChangeRequisition is to communicate changes to an existing request for goods or services. This change must refer to the original document and/or item requested. The change processing assumes replacement of fields sent, with the exception of: the key fields for the Order and Line. If any of the Field Identifiers above require changing, that constitutes a cancellation of the request and/or the addition of another Requisition.

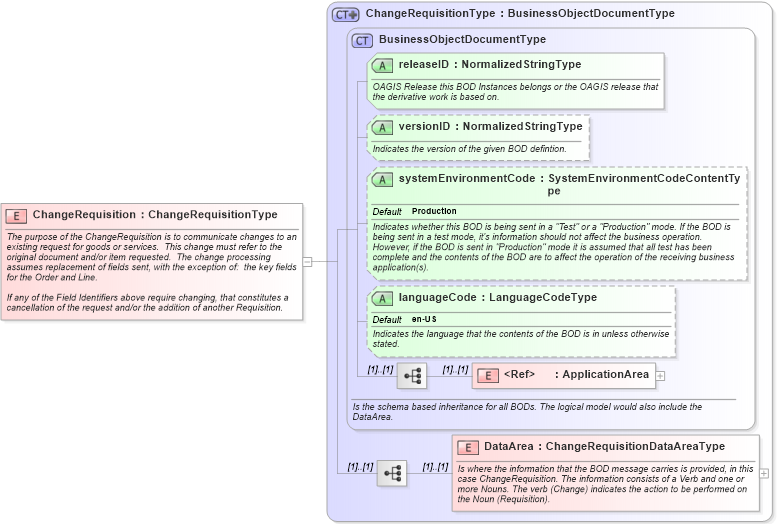

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema changerequisition_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ChangeRequisitionType in schema changerequisition_xsdXSD Diagram of ChangeRequisition in schema changerequisition_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ChangeRequisition" type="ChangeRequisitionType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ChangeRequisition is to communicate changes to an existing request for goods or services.  This change must refer to the original document and/or item requested.  The change processing assumes replacement of fields sent, with the exception of:  the key fields for the Order and Line.

If any of the Field Identifiers above require changing, that constitutes a cancellation of the request and/or the addition of another Requisition.
</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
