Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ProcessShipmentUnit
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ProcessShipmentUnitType
Containing Schema: ProcessShipmentUnit.xsd
Abstract
Documentation:
The purpose of the ProcessShipmentUnit is to enable an application to provide a ShipmentUnit information from another business application module in order for that module to perform the task at hand.. The ProcessShipmentUnit is typically published from the business application that is is requesting that the master or owner of the ShipmentUnit information to process the contained update. This may also occur across enterprises. The respons to the ProcessShipmentUnit is the AcknowledgeShipmentUnit to indicate success or failure. If the receiving system needs to make changes to the ShipmentUnit then the ChangeShipmentUnit can be used a coresponding RespondShipmentUnit accepts the changes or indicates additional changes.

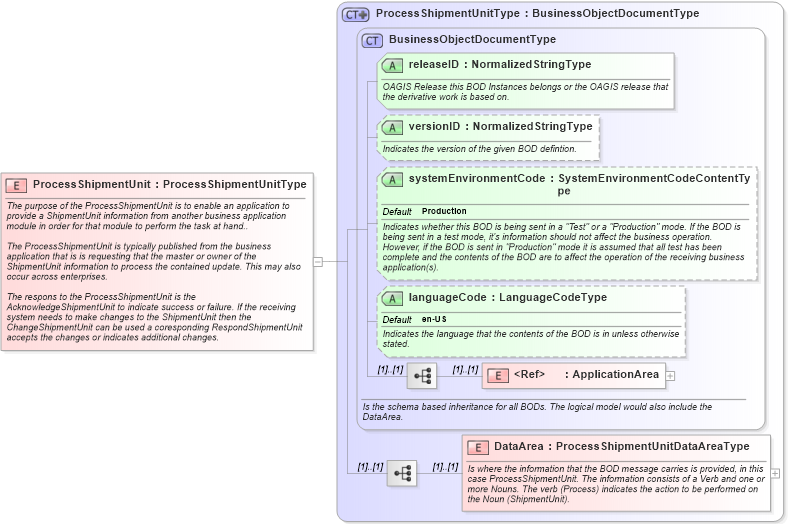

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema processshipmentunit_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ProcessShipmentUnitType in schema processshipmentunit_xsdXSD Diagram of ProcessShipmentUnit in schema processshipmentunit_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ProcessShipmentUnit" type="ProcessShipmentUnitType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ProcessShipmentUnit is to enable an application to provide a ShipmentUnit information from another business application module in order for that module to perform the task at hand..

The ProcessShipmentUnit is typically published from the business application that is is requesting that the master or owner of the ShipmentUnit information to process the contained update. This may also occur across enterprises.

The respons to the ProcessShipmentUnit is the AcknowledgeShipmentUnit to indicate success or failure. If the receiving system needs to make changes to the ShipmentUnit then the ChangeShipmentUnit can be used a coresponding RespondShipmentUnit accepts the changes or indicates additional changes.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
