Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: GetInvoiceLedgerEntry
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:GetInvoiceLedgerEntryType
Containing Schema: GetInvoiceLedgerEntry.xsd
Abstract
Documentation:
The purpose of the GetInvoiceLedgerEntry is to enable an application to request specific InvoiceLedgerEntry information from another business application module. The response to the GetInvoiceLedgerEntry is the ShowInvoiceLedgerEntry.

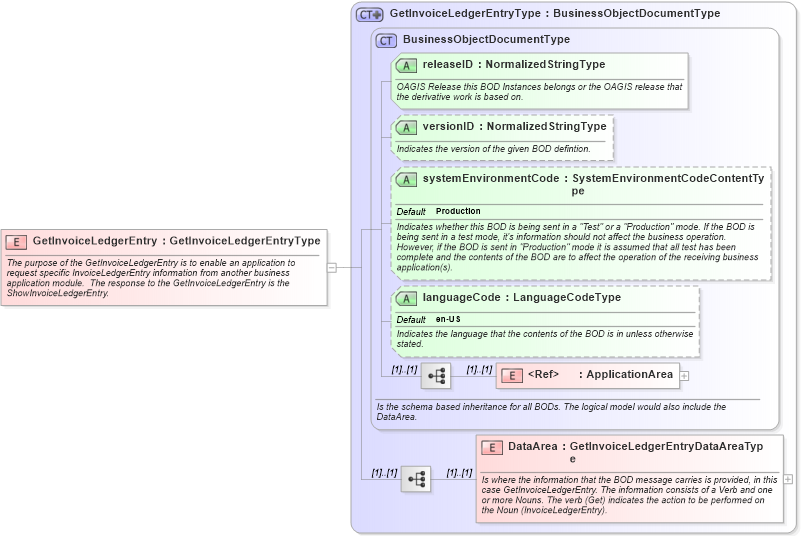

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema getinvoiceledgerentry_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into GetInvoiceLedgerEntryType in schema getinvoiceledgerentry_xsdXSD Diagram of GetInvoiceLedgerEntry in schema getinvoiceledgerentry_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="GetInvoiceLedgerEntry" type="GetInvoiceLedgerEntryType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the GetInvoiceLedgerEntry is to enable an application to request specific InvoiceLedgerEntry information from another business application module.  The response to the GetInvoiceLedgerEntry is the ShowInvoiceLedgerEntry.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
