Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ProcessProductAvailability
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ProcessProductAvailabilityType
Containing Schema: ProcessProductAvailability.xsd
Abstract
Documentation:
The purpose of the ProcessProductAvailability is to enable an application or component to request the reservations for products from another business application or component. The response to the ProcessProductAvailability is the ListProductAvailability. The ProcessProductAvailability also enables the retrieval of information across several documents by using selection fields. This type of functionality is limited to the capabilities of the responding application and needs to be determined during the implementation project.

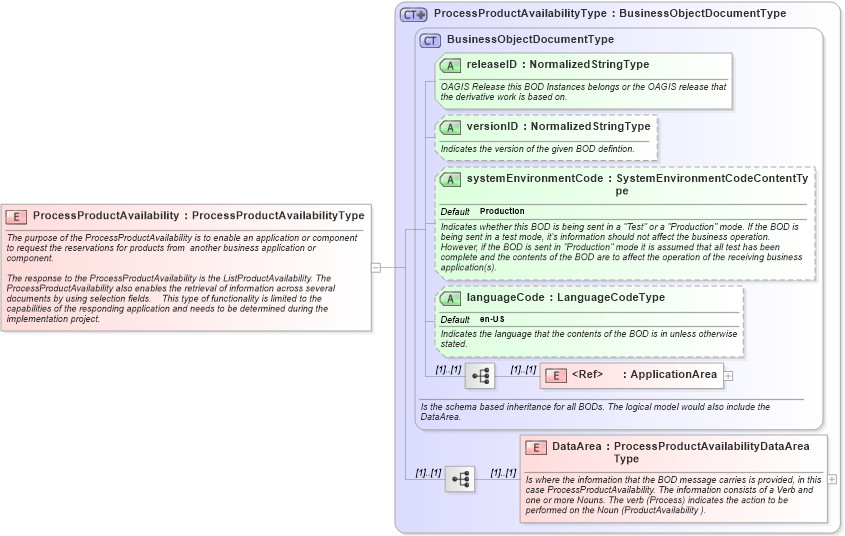

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema processproductavailability_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ProcessProductAvailabilityType in schema processproductavailability_xsdXSD Diagram of ProcessProductAvailability in schema processproductavailability_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ProcessProductAvailability" type="ProcessProductAvailabilityType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ProcessProductAvailability is to enable an application or component to request the reservations for products from  another business application or component.

The response to the ProcessProductAvailability is the ListProductAvailability. The ProcessProductAvailability also enables the retrieval of information across several documents by using selection fields.    This type of functionality is limited to the capabilities of the responding application and needs to be determined during the implementation project.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
