Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ShowUOMGroup
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ShowUOMGroupType
Containing Schema: ShowUOMGroup.xsd
Abstract
Documentation:
The purpose of the ShowUOMGroup is to supply Unit-of-Measure Group relationship information to another business application module. This request may be issued as a response to a GetUOMGroup request or as the result of some other business event. There are many possible business applications in several environments that may use this capability. For example, an MRP, Inventory, or Manufacturing business application could use this to request alternate UOM information for one or more items.

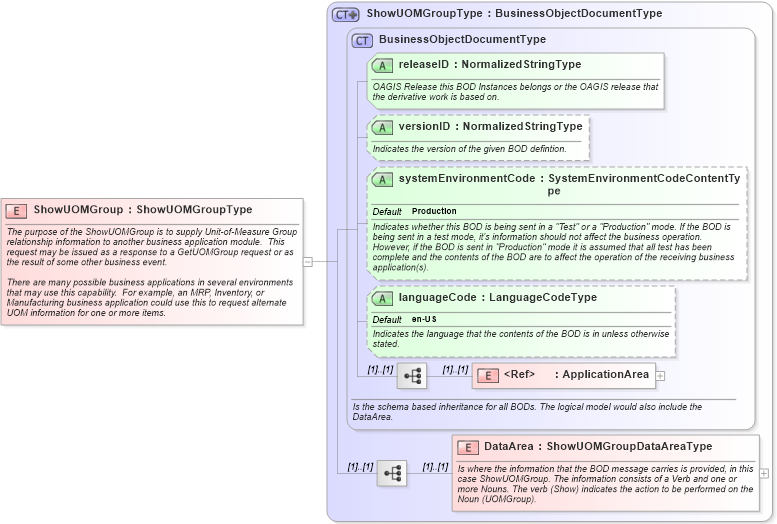

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema showuomgroup_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ShowUOMGroupType in schema showuomgroup_xsdXSD Diagram of ShowUOMGroup in schema showuomgroup_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ShowUOMGroup" type="ShowUOMGroupType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the ShowUOMGroup is to supply Unit-of-Measure Group relationship information to another business application module.  This request may be issued as a response to a GetUOMGroup request or as the result of some other business event.

There are many possible business applications in several environments that may use this capability.  For example, an MRP, Inventory, or Manufacturing business application could use this to request alternate UOM information for one or more items.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
