Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: UpdateEngineeringChangeOrder
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:UpdateEngineeringChangeOrderType
Containing Schema: UpdateEngineeringChangeOrder.xsd
Abstract
Documentation:
The purpose of the UpdateEngineeringChangeOrder to communicate to a business application module or system that the synchronization of a specified engineering change document has been completed successfully. This BOD may be necessary to address the Make to Order, Assemble to Order, or Mixed Mode business ordering scenarios in a Order Management to Manufacturing application integration scenario. There are many possible business applications in several environments that may use this capability. For example, a PDM, MRP, Inventory, or Manufacturing business application could use this to communicate the requirement to Synchronize a Engineering Change Document.

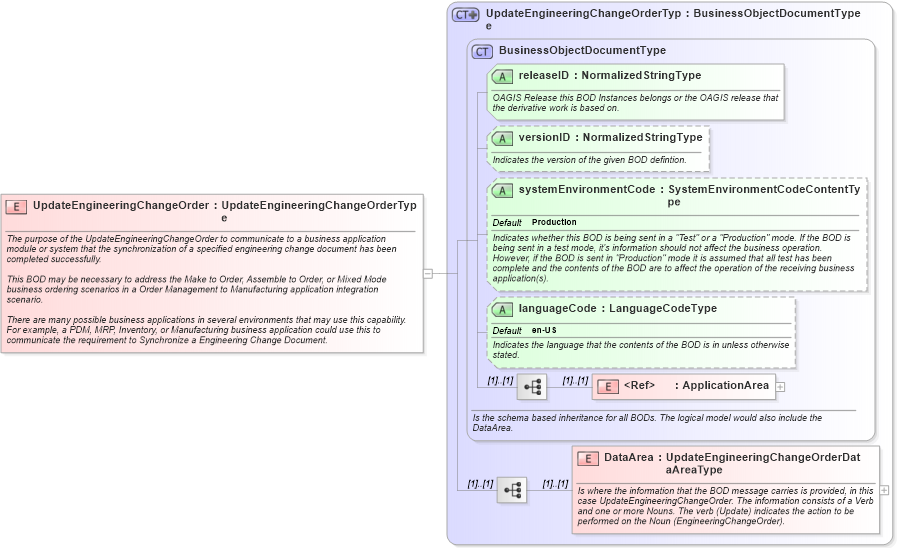

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema updateengineeringchangeorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into UpdateEngineeringChangeOrderType in schema updateengineeringchangeorder_xsdXSD Diagram of UpdateEngineeringChangeOrder in schema updateengineeringchangeorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="UpdateEngineeringChangeOrder" type="UpdateEngineeringChangeOrderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the UpdateEngineeringChangeOrder to communicate to a business application module or system that the synchronization of a specified engineering change document has been completed successfully.

This BOD may be necessary to address the Make to Order, Assemble to Order, or Mixed Mode business ordering scenarios in a Order Management to Manufacturing application integration scenario.

There are many possible business applications in several environments that may use this capability. For example, a PDM, MRP, Inventory, or Manufacturing business application could use this to communicate the requirement to Synchronize a Engineering Change Document.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
