Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ListPickList
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ListPickListType
Containing Schema: ListPickList.xsd
Abstract
Documentation:
In an effort to simpilify the usage of the verbs the ListPickList BOD is being depricated as of OAGIS 9.0, the ListPickList will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS. As such for all new development we recommend that you use the ShowPickList BOD which may serve the same function of the ListPickList BOD. The purpose of the ListPickList is to provide a list of Picking Lists from an ERP system to another application. This BOD may be initiated in response to a GetListPickList request or upon some business event. When a receiving application receives this BOD, the information can be used as is or it may be used to initiate a selection of a specific PickList through the GetPickList request. The processing is designed to provide multiple occurrences of summary data. This BOD will not usually cause updates to occur.

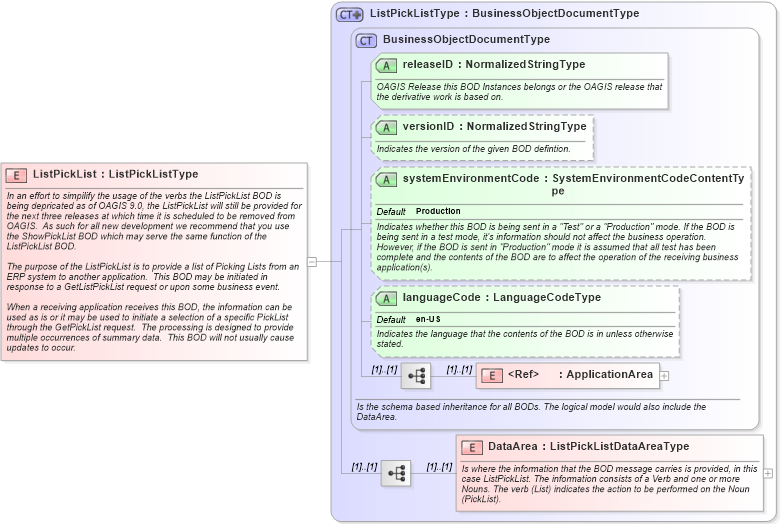

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema listpicklist_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into ListPickListType in schema listpicklist_xsdXSD Diagram of ListPickList in schema listpicklist_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ListPickList" type="ListPickListType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">In an effort to simpilify the usage of the verbs the ListPickList BOD is being depricated as of OAGIS 9.0, the ListPickList will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS.  As such for all new development we recommend that you use the ShowPickList BOD which may serve the same function of the ListPickList BOD.

The purpose of the ListPickList is to provide a list of Picking Lists from an ERP system to another application.  This BOD may be initiated in response to a GetListPickList request or upon some business event.

When a receiving application receives this BOD, the information can be used as is or it may be used to initiate a selection of a specific PickList through the GetPickList request.  The processing is designed to provide multiple occurrences of summary data.  This BOD will not usually cause updates to occur. </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
