Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: GetListPickList
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:GetListPickListType
Containing Schema: GetListPickList.xsd
Abstract
Documentation:
In an effort to simpilify the usage of the verbs the GetListPickList BOD is being depricated as of OAGIS 9.0, the GetListPickList will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS. As such for all new development we recommend that you use the GetPickList BOD which may serve the same function of the GetListPickList BOD. The purpose of the GetListPickList is to enable a business application to request summary information for one or more Picking Lists from an ERP system. If a List of documents is requested, that list will be used so a selection and Get request of a specific picking list can be made, if necessary.

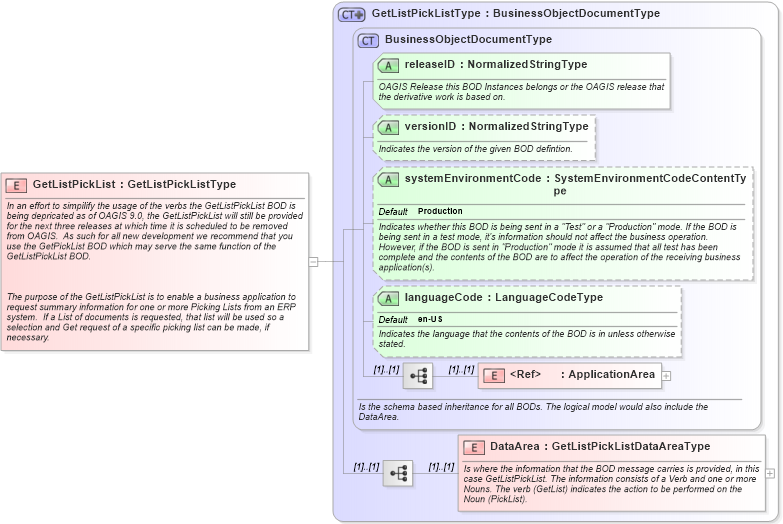

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema getlistpicklist_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into GetListPickListType in schema getlistpicklist_xsdXSD Diagram of GetListPickList in schema getlistpicklist_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="GetListPickList" type="GetListPickListType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">In an effort to simpilify the usage of the verbs the GetListPickList BOD is being depricated as of OAGIS 9.0, the GetListPickList will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS.  As such for all new development we recommend that you use the GetPickList BOD which may serve the same function of the GetListPickList BOD.



The purpose of the GetListPickList is to enable a business application to request summary information for one or more Picking Lists from an ERP system.  If a List of documents is requested, that list will be used so a selection and Get request of a specific picking list can be made, if necessary.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
