Definition Type: Element
Name: AcknowledgeSalesLead
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:AcknowledgeSalesLeadType
Containing Schema: AcknowledgeSalesLead.xsd
Abstract
Documentation:
The purpose of the AcknowledgeSalesLead is to enable an application to provide SalesLead information from one business application to another business application. The AcknowledgeSalesLead is provided in response to the ProcessCart in order to accept or reject the request to process.

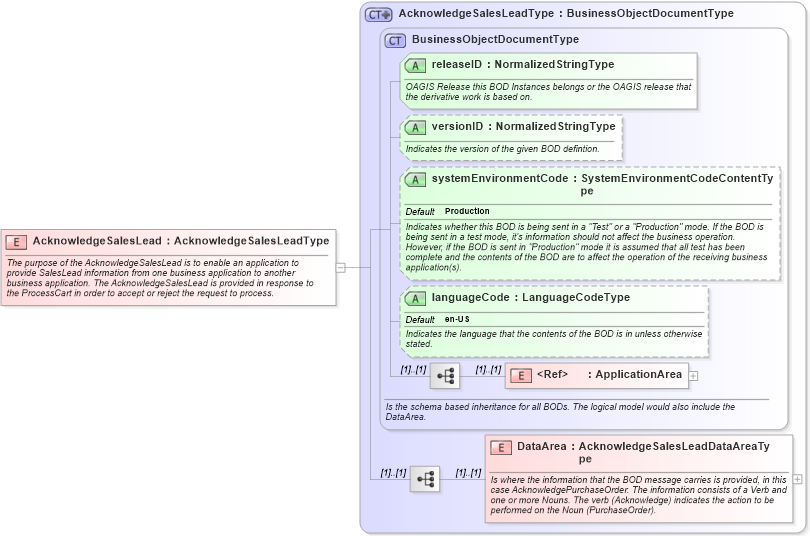

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema acknowledgesaleslead_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into AcknowledgeSalesLeadType in schema acknowledgesaleslead_xsdXSD Diagram of AcknowledgeSalesLead in schema acknowledgesaleslead_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="AcknowledgeSalesLead" type="AcknowledgeSalesLeadType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the AcknowledgeSalesLead is to enable an application to provide SalesLead information from one business application to another business application. The AcknowledgeSalesLead is provided in response to the ProcessCart in order to accept or reject the request to process.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
