Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: SyncUOMGroup
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:SyncUOMGroupType
Containing Schema: SyncUOMGroup.xsd
Abstract
Documentation:
The purpose of the SyncUOMGroup is to supply a set of Unit-Of-Measure relationships to another business application module. This BOD addresses the need for applications to exchange item-independent alternative UOM information beyond the stocking UOM. See the Item UOM Integration Scenario for more detailed information.

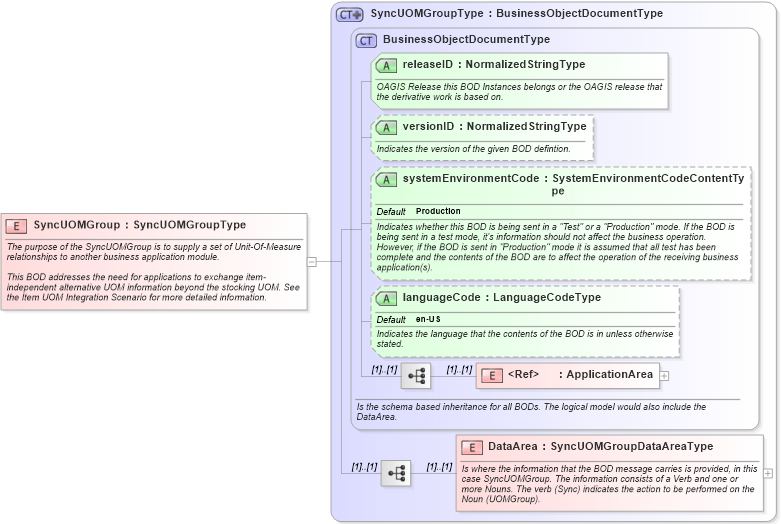

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema syncuomgroup_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsd Drilldown into SyncUOMGroupType in schema syncuomgroup_xsdXSD Diagram of SyncUOMGroup in schema syncuomgroup_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="SyncUOMGroup" type="SyncUOMGroupType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The purpose of the SyncUOMGroup is to supply a set of Unit-Of-Measure relationships to another business application module.

This BOD addresses the need for applications to exchange item-independent alternative UOM information beyond the stocking UOM. See the Item UOM Integration Scenario for more detailed information.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea nsA:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID nsA:releaseID Required
versionID nsA:versionID Optional
systemEnvironmentCode nsA:systemEnvironmentCode Production Optional
languageCode nsA:languageCode en-US Optional
Collapse Derivation Tree:
